MC74HC259ADR2G - onsemi

Description: Output Drive Capability: 10 LSTTL Loads; Outputs Directly Interface to CMOS, NMOS, and TTL; Operating Voltage Range: 2 to 6 V; Low Input Current: 1 A; High Noise Immunity Characteristic of CMOS Devices; These are PbFree Devices

Download MC74HC259ADR2G Model

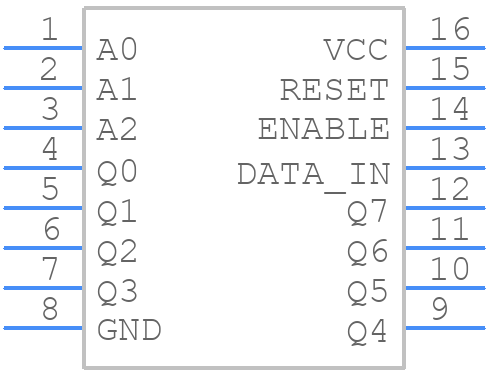

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC259ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74HC259ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74HC259ADR2G Details

  • Manufacturer Part Number:

    MC74HC259ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Max I(ol):

    0.0052 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    42 ns

  • Propagation Delay (tpd):

    175 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74HC259ADR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74HC259ADR2G is 2V to 6V, with a typical voltage of 5V.
  • To ensure proper thermal management, it is recommended to provide adequate heat sinking, keep the device away from heat sources, and maintain good airflow around the device.
  • The maximum clock frequency that the MC74HC259ADR2G can handle is 25 MHz.
  • Yes, the MC74HC259ADR2G can be used in a 3.3V system, but the output voltage will be limited to 3.3V. Additionally, the device's performance may be affected at lower voltages.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent damage to the device. The power-up sequence should be VCC first, then inputs, and the power-down sequence should be inputs first, then VCC.
