MC74HC4040ADR2G-Q - onsemi

Description: Counter IC Binary Counter 1 Element 12 Bit Negative Edge 16-SOIC , 50 MHz , 2V ~ 6V , -55°C ~ 125°C

Download MC74HC4040ADR2G-Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

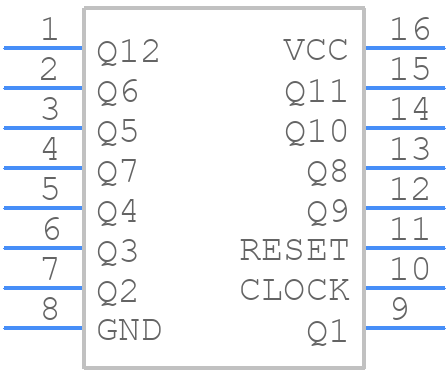

MC74HC4040ADR2G-Q - onsemi - PCB symbol
click to zoom
PCB Footprints

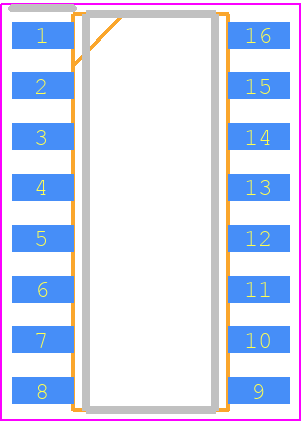

MC74HC4040ADR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom
3D Models
MC74HC4040ADR2G-Q - onsemi - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom

MC74HC4040ADR2G-Q Details

  • Manufacturer Part Number:

    MC74HC4040ADR2G-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Logic IC Type:

    BINARY COUNTER

  • Screening Level:

    AEC-Q100

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74HC4040ADR2G-Q Overview

Use the download button to access the MC74HC4040ADR2G-Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Counters
