MC74HC4046AN footprint, schematic symbol and 3D model by onsemi

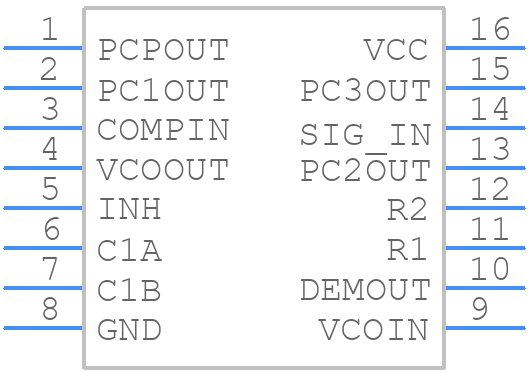

Symbol

click to zoom

PCB Footprints

MC74HC4046AN - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-16

click to zoom

3D Models

MC74HC4046AN - onsemi - 3D model - Dual-In-Line Packages - PDIP-16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74HC4046AN
Part Number MC74HC4046AN
Manufacturer onsemi
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PDIP-16
Released Date Mar 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MC74HC4046AN Details

Manufacturer Part Number:
MC74HC4046AN
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
PLASTIC, DIP-16
Pin Count:
16
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
CONTAINS THREE PHASE COMPARATORS
Analog IC - Other Type:
PHASE LOCKED LOOP
JESD-30 Code:
R-PDIP-T16
JESD-609 Code:
e0
Length:
19.175 mm
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Seated Height-Max:
4.44 mm
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
4.5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.62 mm

MC74HC4046AN Frequently Asked Questions (FAQs)

The recommended operating voltage range for the MC74HC4046AN is 2V to 6V, with a typical voltage of 5V.
To ensure the PLL is properly locked, the VCO input frequency should be within the specified range, and the loop filter components should be selected according to the datasheet recommendations. Additionally, the PLL lock detector output can be monitored to verify lock status.
The maximum clock frequency that the MC74HC4046AN can handle is 20MHz, but this may vary depending on the specific application and operating conditions.
The loop filter components should be chosen based on the desired PLL bandwidth, phase margin, and stability. The datasheet provides guidelines and equations to help with component selection.
The MC74HC4046AN can be used as a standalone PLL, as it has an internal voltage-controlled oscillator (VCO). However, an external oscillator can be used if desired, and the device can be configured to use an external clock input.
