MC74HC4051ADTG - onsemi

Description: Low Crosstalk Between Switches; Fast Switching and Propagation Speeds; Chip Complexity: HC4051A - 184 FETs or 46 Equivalent Gates HC4052A - 168 FETs or 42 Equivalent Gates HC4053A - 156 FETs or 39 Equivalent Gates; Analog Power Supply Range (VCC - VEE ) = 2.0 to 12.0 V; In Compliance With the Requirements of JEDEC Standard No. 7A; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Diode Protection on All Inputs/Outputs; Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; L

Download MC74HC4051ADTG Model

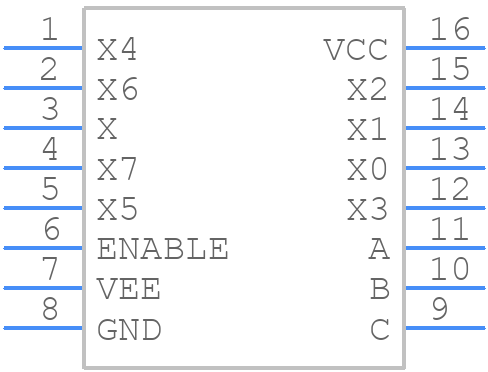

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC4051ADTG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom
3D Models
MC74HC4051ADTG - onsemi  - 3D model - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom

MC74HC4051ADTG Details

  • Manufacturer Part Number:

    MC74HC4051ADTG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 2V TO 12V (VCC-VEE) SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    18 Ω

  • On-state Resistance-Max (Ron):

    170 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    76 ns

  • Switch-on Time-Max:

    83 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MC74HC4051ADTG Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the MC74HC4051ADTG is 10 MHz.
  • Yes, the MC74HC4051ADTG can be used as a level shifter, but it's not recommended as it's primarily designed as an analog multiplexer/demultiplexer.
  • To minimize signal attenuation, ensure that the input impedance of the circuit connected to the output of the MC74HC4051ADTG is high, and the output impedance of the device driving the input of the MC74HC4051ADTG is low.
  • The maximum voltage rating for the analog signals on the MC74HC4051ADTG is VCC + 0.5V, but it's recommended to keep the analog signal voltage within the VCC and GND rails to ensure proper operation.
  • Yes, the MC74HC4051ADTG can be used with a single supply voltage, but it's recommended to use a dual supply voltage (VCC and GND) for optimal performance.
