MC74HC4053ADG - onsemi

Description: Low Crosstalk Between Switches; Fast Switching and Propagation Speeds; Chip Complexity: HC4051A - 184 FETs or 46 Equivalent Gates HC4052A - 168 FETs or 42 Equivalent Gates HC4053A - 156 FETs or 39 Equivalent Gates; Analog Power Supply Range (VCC - VEE ) = 2.0 to 12.0 V; In Compliance With the Requirements of JEDEC Standard No. 7A; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Diode Protection on All Inputs/Outputs; Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; L

Download MC74HC4053ADG Model

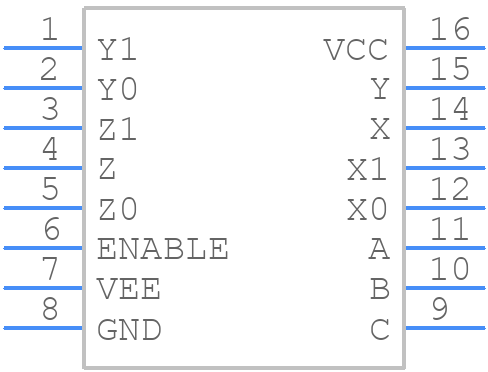

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC4053ADG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16-
click to zoom
3D Models
MC74HC4053ADG - onsemi  - 3D model - Small Outline Packages - SOIC−16-
click to zoom

MC74HC4053ADG Details

  • Manufacturer Part Number:

    MC74HC4053ADG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 2V TO 12V (VCC-VEE) SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    12 Ω

  • On-state Resistance-Max (Ron):

    80 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    160 ns

  • Switch-on Time-Max:

    245 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74HC4053ADG Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the MC74HC4053ADG is typically 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper signal integrity, it is recommended to use a low-impedance source, minimize trace lengths, and use proper termination and shielding to reduce noise and reflections.
  • The recommended power-up sequence is to apply VCC first, followed by the control signals (S0, S1, and E). This ensures that the device is properly initialized and minimizes the risk of latch-up or other unexpected behavior.
  • While the MC74HC4053ADG is primarily designed for analog signals, it can be used as a digital multiplexer in certain applications. However, the device's analog nature means it may not be suitable for high-speed digital signals, and additional buffering or conditioning may be required.
  • The MC74HC4053ADG has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device within a safe operating temperature range by providing adequate heat sinking, air flow, and thermal management.
