MC74HC4094ADTR2G - onsemi

Description: Wide Operating Voltage Range: 2.0 to 6.0 V; Low Power Dissipation: ICC = < 10 A; In Compliance with the Requirements Defined by JEDEC Standard No. 7A; These are PbFree Devices

Download MC74HC4094ADTR2G Model

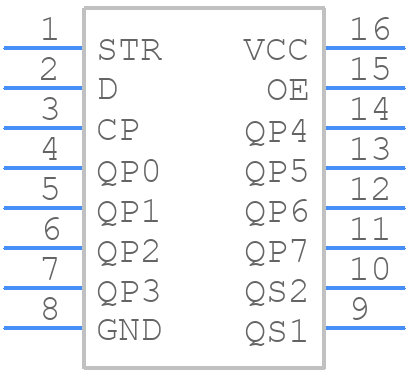

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC4094ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MC74HC4094ADTR2G
click to zoom
3D Models
MC74HC4094ADTR2G - onsemi  - 3D model - Small Outline Packages - MC74HC4094ADTR2G
click to zoom

MC74HC4094ADTR2G Details

  • Manufacturer Part Number:

    MC74HC4094ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    4000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Propagation Delay (tpd):

    170 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    4 MHz

MC74HC4094ADTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74HC4094ADTR2G is 2V to 6V.
  • To ensure reliable data transfer, ensure that the input signals are clean and free of noise, and that the clock frequency is within the recommended range. Also, use proper termination and decoupling to minimize signal reflections and noise.
  • The maximum clock frequency that the MC74HC4094ADTR2G can handle is 10 MHz.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals. Also, ensure that the power supply voltage is stable and within the recommended range.
  • The maximum current that the MC74HC4094ADTR2G can sink or source is 25 mA per output pin.
