MC74HC74AN - Motorola

Description: The MC54/74HC74A is identical in pinout to the LS74. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. This device consists of two D flip–flops with individual Set, Reset, and Clock inputs. Information at a D–input is transferred to the corresponding Q output on the next positive going edge of the clock input. Both Q and Q outputs are available from each flip–flop. The Set and Reset inputs are asynchronous.

Download MC74HC74AN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MC74HC74AN model

Email notifications will be applied after download.

Send part feedback

Symbol

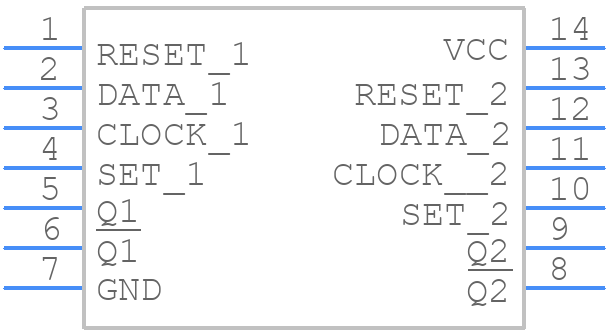

MC74HC74AN - Motorola - PCB symbol

PCB Footprints

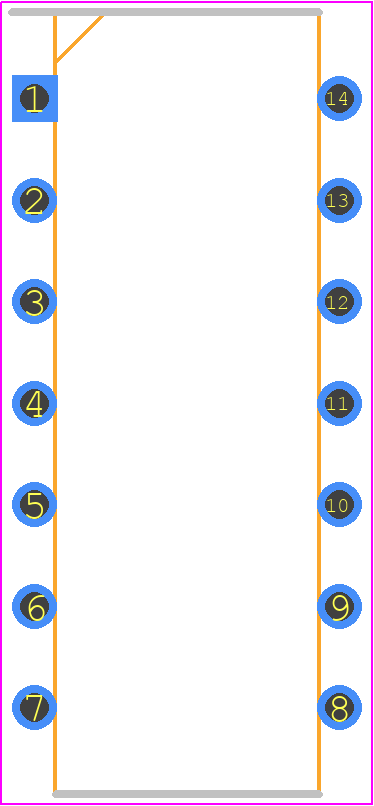

MC74HC74AN - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-14

3D Models

MC74HC74AN - Motorola - 3D model - Dual-In-Line Packages - DIP-14

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74HC74AN
Part Number MC74HC74AN
Manufacturer Motorola
Pin Count 14
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP-14
Released Date Aug 14, 2024
Last Modified Date Aug 14, 2024 8:57 AM UTC
Pinout / Pin List Click Here (Member Only)

MC74HC74AN Details

Manufacturer Part Number:
MC74HC74AN
Part Life Cycle Code:
Transferred
Package Description:
PLASTIC, DIP-14
HTS Code:
8542.39.00.60
Manufacturer:
Motorola Semiconductor Products
Family:
HC/UH
JESD-30 Code:
R-PDIP-T14
JESD-609 Code:
e0
Length:
18.86 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
D FLIP-FLOP
Max Frequency@Nom-Sup:
20000000 Hz
Max I(ol):
0.004 A
Number of Bits:
1
Number of Functions:
2
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Propagation Delay (tpd):
30 ns
Qualification Status:
Not Qualified
Seated Height-Max:
4.69 mm
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Trigger Type:
POSITIVE EDGE
Width:
7.62 mm
fmax-Min:
20 MHz

MC74HC74AN Frequently Asked Questions (FAQs)

The recommended operating voltage range for the MC74HC74AN is 2V to 6V, with a typical voltage of 5V.
The asynchronous reset input (CLR) should be tied to VCC through a pull-up resistor or connected to a logic high signal to ensure proper operation. A low signal on CLR will reset the flip-flop.
The maximum clock frequency that the MC74HC74AN can handle is 25 MHz, but this can vary depending on the operating voltage and load capacitance.
Yes, the MC74HC74AN can operate at 3.3V, but the output voltage levels may not be as high as those at 5V, and the device may not be as fast.
To ensure proper power-up and initialization, the VCC pin should be ramped up slowly (typically 10-20 ms) to prevent latch-up and ensure that the internal circuitry is properly initialized.
