MC74HCT4051ADTR2G - onsemi

Description: Fast Switching and Propagation Speeds; Low Crosstalk Between Switches; Diode Protection on All Inputs/Outputs; Analog Power Supply Range (VCC VEE) = 2.0 to 12.0 V; Digital (Control) Power Supply Range (VCC GND) = 2.0 to 6.0 V; Improved Linearity and Lower ON Resistance Than MetalGate Counterparts

Download MC74HCT4051ADTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

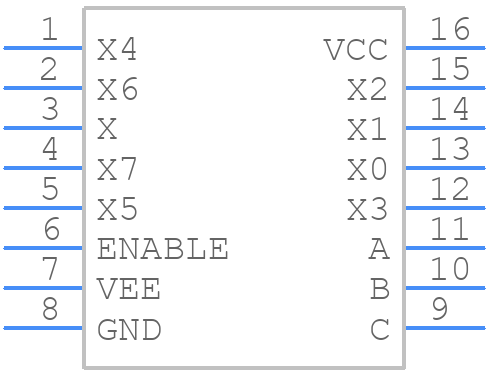

MC74HCT4051ADTR2G - onsemi - PCB symbol
