MC74HCT4053ADTR2G - onsemi

Description: Fast Switching and Propagation Speeds; Low Crosstalk Between Switches; Diode Protection on All Inputs/Outputs; Analog Power Supply Range (VCC − VEE) = 2.0 to 12.0 V; Digital (Control) Power Supply Range (VCC − GND) = 2.0 to 6.0 V; Improved Linearity and Lower ON Resistance Than Metal−Gate Counterparts; Low Noise; In Compliance with the Requirements of JEDEC Standard No. 7 A; These Devices are Pb−Free and are RoHS Compliant

Download MC74HCT4053ADTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

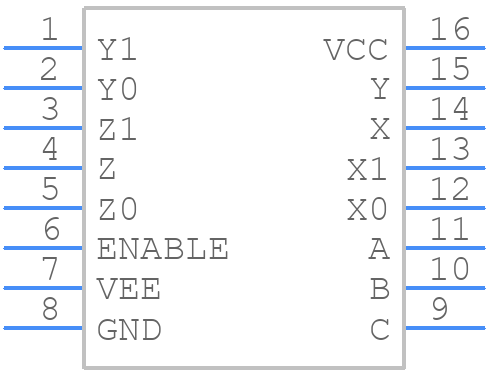

MC74HCT4053ADTR2G - onsemi - PCB symbol
