MC74LCX02DTR2G-Q - onsemi

Description: Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements; 5V Tolerant Inputs - Interface Capability With 5V TTL Logic; ESD Performance: Human Body Model >2000V; Machine Model >200V; Designed for 2.3V to 3.6V VCC Operation; Latchup Performance Exceeds 500mA; LVTTL Compatible; LVCMOS Compatible; 24mA Balanced Output Sink and Source Capability; Pb-Free Packages are Available*

Download MC74LCX02DTR2G-Q Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MC74LCX02DTR2G-Q model

Email notifications will be applied after download.

Send part feedback

Symbol

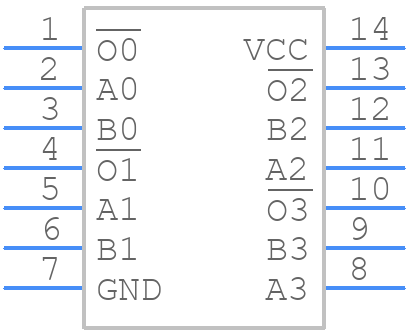

MC74LCX02DTR2G-Q - onsemi - PCB symbol

PCB Footprints

MC74LCX02DTR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1

3D Models

MC74LCX02DTR2G-Q - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74LCX02DTR2G-Q
Part Number MC74LCX02DTR2G-Q
Manufacturer onsemi
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1
Released Date Jun 6, 2025
Last Modified Date Jun 6, 2025 4:02 AM UTC
Pinout / Pin List Click Here (Member Only)

MC74LCX02DTR2G-Q Details

Manufacturer Part Number:
MC74LCX02DTR2G-Q
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
Logic IC Type:
NOR GATE
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
30

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MC74LCX02DTR2G-Q Overview

Use the download button to access the MC74LCX02DTR2G-Q schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MC74L, or try a keyword search, such as Gates
