MC74LCX125DR2G - onsemi

Description: Near Zero Static Supply Current in All Three Logic States (10mA) Substantially Reduces System Power Requirements; 24mA Balanced Output Sink and Source Capability; LVCMOS Compatible; IOFF Specification Guarantees High Impedance When VCC = 0V; ESD Performance: Human Body Model >2000V; Machine Model >200V; 5V Tolerant - Interface Capability With 5V TTL Logic; Designed for 2.3 to 3.6V V CC Operation; Supports Live Insertion and Withdrawal; LVTTL Compatible; Latchup Performance Exceeds 500mA; Pb-Free Packages ar

Download MC74LCX125DR2G Model

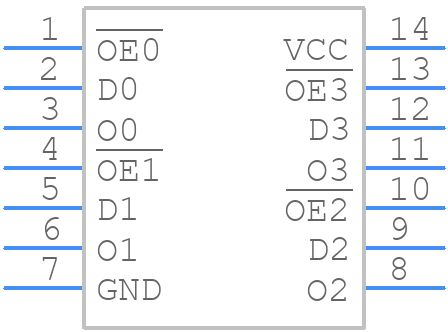

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LCX125DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE K
click to zoom
3D Models
MC74LCX125DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE K
click to zoom

MC74LCX125DR2G Details

  • Manufacturer Part Number:

    MC74LCX125DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Control Type:

    ENABLE LOW

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    6 ns

  • Propagation Delay (tpd):

    7.2 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74LCX125DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LCX125DR2G is 2.3V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed to reduce signal reflections.
  • While the MC74LCX125DR2G is designed for low-voltage applications, it can tolerate 5V inputs, but the output voltage will be limited to the supply voltage (VCC). However, it's recommended to use a voltage regulator or level shifter to ensure reliable operation.
  • The maximum frequency of operation for the MC74LCX125DR2G is 100 MHz, but this can vary depending on the specific application and PCB design.
  • To ensure proper operation, power up the VCC pin before applying input signals, and power down the VCC pin after removing input signals. This helps prevent latch-up and ensures reliable operation.
