MC74LCX32DR2G - onsemi

Description: Designed for 1.65 V to 5.5 V VCC Operation  5.0 V Tolerant Inputs − Interface Capability With 5.0 V TTL Logic  LVTTL Compatible  LVCMOS Compatible  24 mA Balanced Output Sink and Source Capability @ 3.0 V  Near Zero Static Supply Current (10 A) Substantially Reduces System Power Requirements  Latchup Performance Exceeds 100 mA  ESD Performance: Human Body Model >2000 V  −Q Suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified

Download MC74LCX32DR2G Model

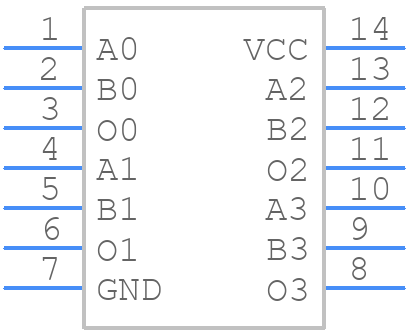

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LCX32DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
MC74LCX32DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

MC74LCX32DR2G Details

  • Manufacturer Part Number:

    MC74LCX32DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR GATE

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5.5 ns

  • Propagation Delay (tpd):

    6.6 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74LCX32DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LCX32DR2G is 2.3V to 3.6V, although it can operate from 1.65V to 5.5V with reduced performance.
  • When the input pins are not in use, they should be tied to a valid logic level (either VCC or GND) to prevent unwanted switching and reduce power consumption.
  • The maximum frequency of operation for the MC74LCX32DR2G is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
  • To ensure that the output signals are not distorted or attenuated, it is recommended to use a suitable output load capacitance (e.g. 50pF) and to keep the output traces as short as possible to minimize signal degradation.
  • Yes, the MC74LCX32DR2G is compatible with 5V logic systems, but it is recommended to use a voltage regulator or level shifter to ensure that the input signals are within the recommended operating voltage range.
