The recommended operating voltage range for the MC74LCX32DTG is 2.3V to 3.6V, although it can operate as low as 1.65V with reduced performance.
When the input pins are not in use, they should be tied to a valid logic level (either VCC or GND) to prevent unwanted switching and reduce power consumption.
The maximum frequency of operation for the MC74LCX32DTG is typically around 100 MHz, although this can vary depending on the specific application and operating conditions.
To ensure that the output signals are properly terminated, it is recommended to use a termination resistor (typically 50-75 ohms) at the receiving end of the signal line to prevent signal reflections and ensure signal integrity.
The power consumption of the MC74LCX32DTG is typically around 1-2 μA per gate, although this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC74LCX32DTG Overview

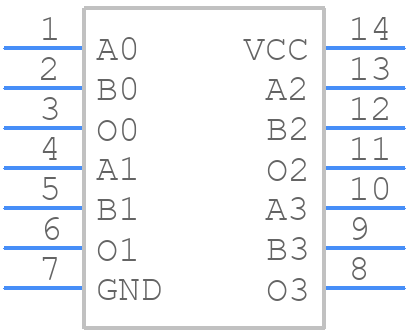

Use the download button to access the MC74LCX32DTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74L,
