MC74LVX157DR2G - onsemi

Description: Latchup Performance Exceeds 300mA; High Speed: tPD = 5.1ns (Typ) at VCC = 3.3V; Low Power Dissipation: ICC = 4µA (Max) at TA = 25 C; Low Noise: VOLP = 0.5V (Max); ESD Performance: HBM > 2000V; Machine Model > 200V; Power Down Protection Provided on Inputs; Pin and Function Compatible with Other Standard Logic Families; Balanced Propagation Delays; Pb-Free Packages are Available*

Download MC74LVX157DR2G Model

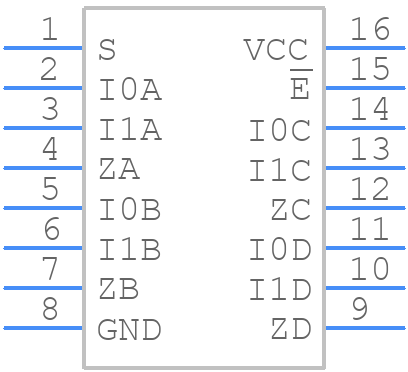

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LVX157DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74LVX157DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74LVX157DR2G Details

  • Manufacturer Part Number:

    MC74LVX157DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    13 ns

  • Propagation Delay (tpd):

    19 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74LVX157DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LVX157DR2G is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the MC74LVX157DR2G is designed for low-voltage applications, it can tolerate 5V inputs, but the output voltage will be limited to the supply voltage (VCC). However, it's not recommended to use it in a 5V system without proper voltage translation and level shifting.
  • To avoid latch-up or other issues, ensure that the power rails are sequenced correctly, with the VCC pin being powered up last. Also, consider using a power sequencing controller or a voltage supervisor to ensure proper power-up and power-down sequences.
  • The maximum clock frequency supported by the MC74LVX157DR2G is 100 MHz, but this can vary depending on the specific application and operating conditions. Consult the datasheet and application notes for more information.
