MC74LVX259DR2G - onsemi

Description: High Speed: tPD = 7.0 ns (Typ) at VCC = 3.3 V; Low Power Dissipation: ICC = 2 µA (Max) at TA = 25°C; High Noise Immunity: VNIH = VNIL = 28% VCC; CMOS-Compatible Outputs: VOH > 0.8 VCC ; VOL < 0.1 VCC @Load; Power Down Protection Provided on Inputs and Outputs; Balanced Propagation Delays; Pin and Function Compatible with Other Standard Logic Families; Latchup Performance Exceeds 300 mA; ESD Performance: HBM > 2000 V; Machine Model > 200 V; Pb-Free Packages are Available*

Download MC74LVX259DR2G Model

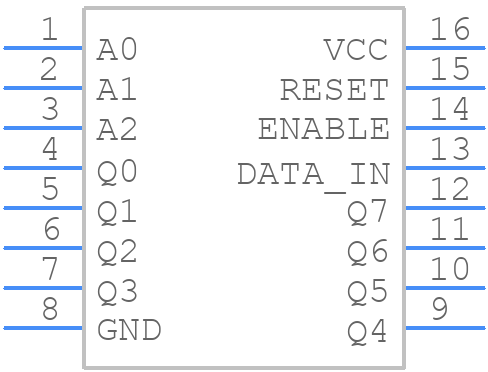

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LVX259DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom
3D Models
MC74LVX259DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom

MC74LVX259DR2G Details

  • Manufacturer Part Number:

    MC74LVX259DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    LV/LV-A/LVX/H

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.000002 mA

  • Prop. Delay@Nom-Sup:

    14 ns

  • Propagation Delay (tpd):

    15 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74LVX259DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LVX259DR2G is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
  • No, the MC74LVX259DR2G is not recommended for use in 5V systems. The maximum recommended operating voltage is 3.6V, and exceeding this voltage may cause damage to the device.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals. Also, ensure that the power rails are sequenced in a way that prevents any voltage from being applied to the inputs before the VCC pin is powered up.
  • The maximum clock frequency supported by the MC74LVX259DR2G is 100 MHz.
