MC74LVX4051DG - onsemi

Description: Improved Linearity and Lower ON Resistance Than Metal-Gate, HSL, or VHC Counterparts; Low Noise; Analog Power Supply Range (VCC - VEE ) = -3.0 V to +3.0 V; Low Crosstalk Between Switches; Digital (Control) Power Supply Range (VCC - GND) = 2.5 to 6.0 V; Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to +/- 3.3 V; Fast Switching and Propagation Speeds; Break-Before-Make Circuitry; Pb-Free Packages are Available*

Download MC74LVX4051DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

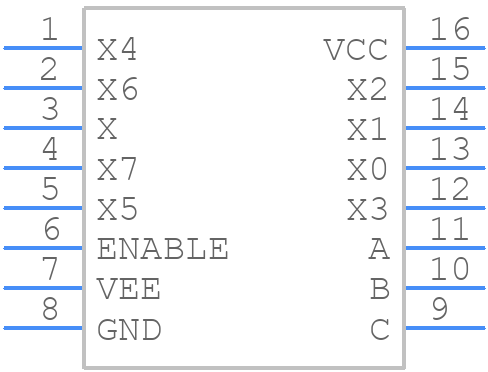

Symbol
MC74LVX4051DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74LVX4051DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom
3D Models
MC74LVX4051DG - onsemi - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom

MC74LVX4051DG Details

  • Manufacturer Part Number:

    MC74LVX4051DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.15

  • JESD-609 Code:

    e3

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MC74LVX4051DG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC74LVX4051DG is 30 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper power sequencing, it is recommended to power up the VCC pin before the analog signal inputs, and to power down the VCC pin after the analog signal inputs. This helps to prevent latch-up and damage to the device.
  • The recommended operating voltage range for the MC74LVX4051DG is 2.3V to 3.6V, but it can operate down to 1.65V with reduced performance.
  • The enable pin (EN) is an active-low input that enables or disables the analog switch. When EN is low, the switch is enabled, and when EN is high, the switch is disabled. It is recommended to tie the EN pin to a valid logic level (either VCC or GND) to ensure proper operation.
  • The maximum analog signal voltage that can be applied to the MC74LVX4051DG is VCC + 0.5V, but it is recommended to keep the analog signal voltage within the range of VCC - 0.5V to VCC + 0.5V to ensure proper operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74LVX4051DG Overview

Use the download button to access the MC74LVX4051DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74L, or try a keyword search, such as Multiplexer/Demultiplexers
