Part Image

MC74LVX4052DG - onsemi

Description: Analog Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Low Crosstalk Between Switches; Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to +/- 3.3 V; Fast Switching and Propagation Speeds; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Improved Linearity and Lower ON Resistance Than Metal-Gate, HSL, or VHC Counterparts; Low Noise; Pb-Free Packages are Available*

Download MC74LVX4052DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

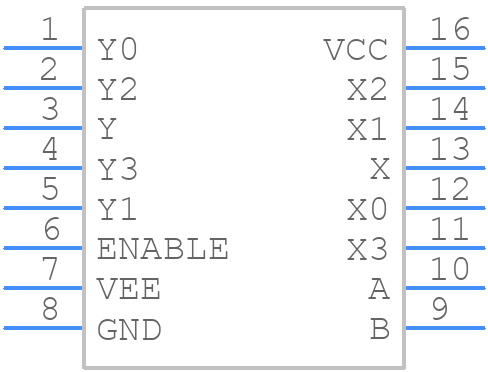

Symbol
MC74LVX4052DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74LVX4052DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-
click to zoom
3D Models
MC74LVX4052DG - onsemi - 3D model - Small Outline Packages - SOIC-
click to zoom

MC74LVX4052DG Details

  • Manufacturer Part Number:

    MC74LVX4052DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.58

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MC74LVX4052DG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LVX4052DG is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed to reduce signal reflections.
  • No, the MC74LVX4052DG is not recommended for use in 5V systems. It is designed for low-voltage applications (1.65V to 3.6V). Using it in a 5V system may cause damage to the device.
  • The maximum frequency of operation for the MC74LVX4052DG is 100 MHz.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74LVX4052DG Overview

Use the download button to access the MC74LVX4052DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74L, or try a keyword search, such as Multiplexer/Demultiplexers
