MC74LVX4053DR2G - onsemi

Description: Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to +/- 3.3 V; Analog Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Low Noise; Low Crosstalk Between Switches; Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Fast Switching and Propagation Speeds; Pb-Free Packages are Available

Download MC74LVX4053DR2G Model

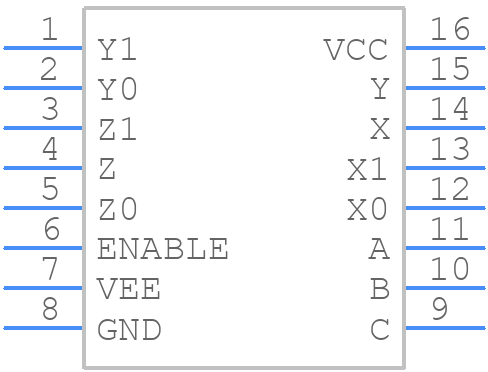

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LVX4053DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74LVX4053DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74LVX4053DR2G Details

  • Manufacturer Part Number:

    MC74LVX4053DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC 16 LEAD-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -3 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    26 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    28 ns

  • Switch-on Time-Max:

    28 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74LVX4053DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LVX4053DR2G is 1.65V to 3.6V.
  • To ensure proper power sequencing, it is recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after all input signals have been removed.
  • The maximum allowable voltage on the analog input pins is VCC + 0.5V, but it is recommended to keep the input voltage within the VCC range to ensure proper operation.
  • While the MC74LVX4053DR2G is designed for low-voltage operation, it can tolerate 5V on the digital input pins, but the analog input pins should not exceed 3.6V. However, it is recommended to use a voltage regulator or level shifter to ensure proper operation and to prevent damage to the device.
  • To prevent electrostatic discharge (ESD) damage, it is recommended to handle the MC74LVX4053DR2G with an ESD wrist strap or mat, and to ensure that all equipment and tools are properly grounded.
