MC74LVX8053DR2G - onsemi

Description: Chip Complexity: LVX8053 - 156 FETs or 39 Equivalent Gates; Analog Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Fast Switching and Propagation Speeds; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Low Noise; Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; Diode Protection on All Inputs/Outputs; Low Crosstalk Between Switches; In Compliance With the Requirements of JEDEC Standard No. 7A; Pb-Free Packages are Available*

Download MC74LVX8053DR2G Model

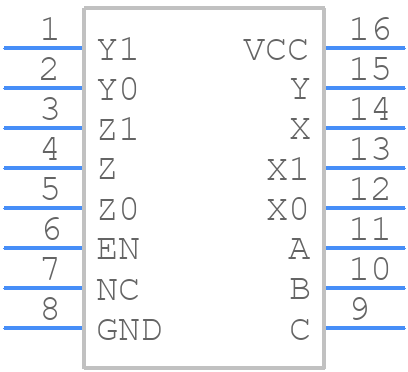

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LVX8053DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74LVX8053DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74LVX8053DR2G Details

  • Manufacturer Part Number:

    MC74LVX8053DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.58

  • Additional Feature:

    SPDT

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    37 dB

  • On-state Resistance Match-Nom:

    25 Ω

  • On-state Resistance-Max (Ron):

    50 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.16 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    30 ns

  • Switch-on Time-Max:

    15 ns

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74LVX8053DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LVX8053DR2G is 1.65V to 3.6V.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up conditions.
  • The maximum allowable voltage on the input pins of the MC74LVX8053DR2G is 3.6V, regardless of the VCC voltage. Exceeding this voltage may cause damage to the device.
  • The MC74LVX8053DR2G is rated for operation from -40°C to 125°C. Ensure that the device is operated within this temperature range to maintain its performance and reliability. Proper thermal management, such as heat sinking and airflow, may be necessary to prevent overheating.
  • The recommended termination scheme for the MC74LVX8053DR2G is to use a 50Ω pull-up resistor to VCC for each output pin. This ensures that the outputs are properly terminated and minimizes signal reflections.
