MC74LVXT4052DTR2G - onsemi

Description: Encoders, Decoders, Multiplexers & Demultiplexers LOG CMOS MLTIPLXR ANALOG

Download MC74LVXT4052DTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

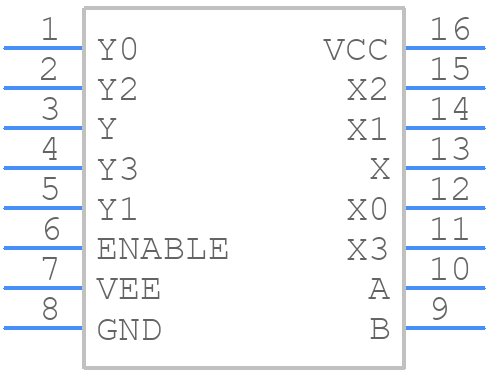

MC74LVXT4052DTR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74LVXT4052DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−16 WB CASE 948F ISSUE B
click to zoom
3D Models
MC74LVXT4052DTR2G - onsemi - 3D model - Small Outline Packages - TSSOP−16 WB CASE 948F ISSUE B
click to zoom

MC74LVXT4052DTR2G Details

  • Manufacturer Part Number:

    MC74LVXT4052DTR2G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    37 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.08

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74LVXT4052DTR2G Overview

Use the download button to access the MC74LVXT4052DTR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74L, or try a keyword search, such as Multiplexer/Demultiplexers
