MC908AZ60ACFUE - NXP

Description: MCU 8-bit HC08 CISC 60KB Flash 5V Automotive 64-Pin PQFP Tray

Download MC908AZ60ACFUE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC908AZ60ACFUE - NXP - PCB symbol
click to zoom
PCB Footprints

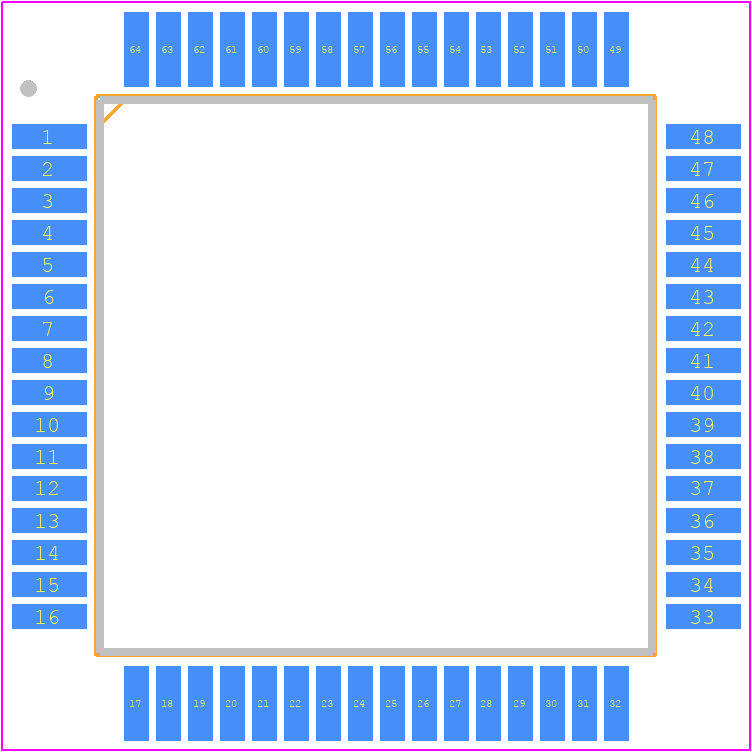

MC908AZ60ACFUE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - MC908AZ60ACFUEssa
click to zoom
3D Models
MC908AZ60ACFUE - NXP - 3D model - Quad Flat Packages - MC908AZ60ACFUEssa
click to zoom

MC908AZ60ACFUE Details

  • Manufacturer Part Number:

    MC908AZ60ACFUE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    20 X 20 MM, PLASTIC, QFP-64

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    8

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    50

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.45 mm

  • Speed:

    8.4 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC908AZ60ACFUE Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clock signals.
  • To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's channel select register (ADCCFG) to select the desired channel. You can also use the ADC's scan mode to convert multiple channels sequentially.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
  • To implement a watchdog timer, you need to configure the COP (Computer Operating Properly) module to generate a reset signal if the software fails to refresh the COP timer within a specified time period.
  • Yes, the MC908AZ60ACFUE can operate with a 3.3V power supply. However, you need to ensure that the voltage regulator is capable of providing a stable 3.3V output, and that the microcontroller's internal voltage regulator is disabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC908AZ60ACFUE Overview

Use the download button to access the MC908AZ60ACFUE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC908, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
