MC908JK3ECDWE - NXP

Description: NXP - MC908JK3ECDWE - MCU, 8BIT, HC08, 8MHZ, SOIC-20

Download MC908JK3ECDWE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

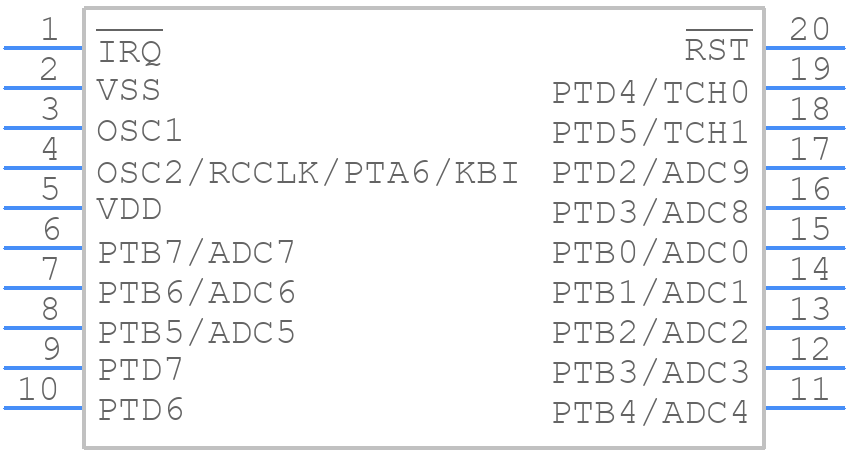

MC908JK3ECDWE - NXP - PCB symbol
click to zoom
PCB Footprints
MC908JK3ECDWE - NXP PCB footprint - Small Outline Packages - Small Outline Packages - 20LD SOIC
click to zoom
3D Models
MC908JK3ECDWE - NXP - 3D model - Small Outline Packages - 20LD SOIC
click to zoom

MC908JK3ECDWE Details

  • Manufacturer Part Number:

    MC908JK3ECDWE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bit Size:

    8

  • CPU Family:

    HC08

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    20

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    128

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC908JK3ECDWE Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clock signals.
  • The watchdog timer can be configured using the WCR (Watchdog Control Register). Set the WCR to enable the watchdog timer, and then set the prescaler and timeout values according to your application's requirements.
  • The COP module is a watchdog timer that monitors the microcontroller's operation and resets the device if it fails to respond within a specified time period. This helps to prevent the microcontroller from getting stuck in an infinite loop or other abnormal operation.
  • The SCI module can be used for asynchronous serial communication. Configure the SCI control register (SCCR) to set the baud rate, data bits, and stop bits. Then, use the SCI data register (SCDR) to transmit and receive data.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC908JK3ECDWE Overview

Use the download button to access the MC908JK3ECDWE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC908, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
