MC908MR32CFUE - NXP

Description: MCU 8-bit HC08 CISC 32KB Flash 5V 64-Pin PQFP Tray

Download MC908MR32CFUE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC908MR32CFUE - NXP - PCB symbol
click to zoom
PCB Footprints

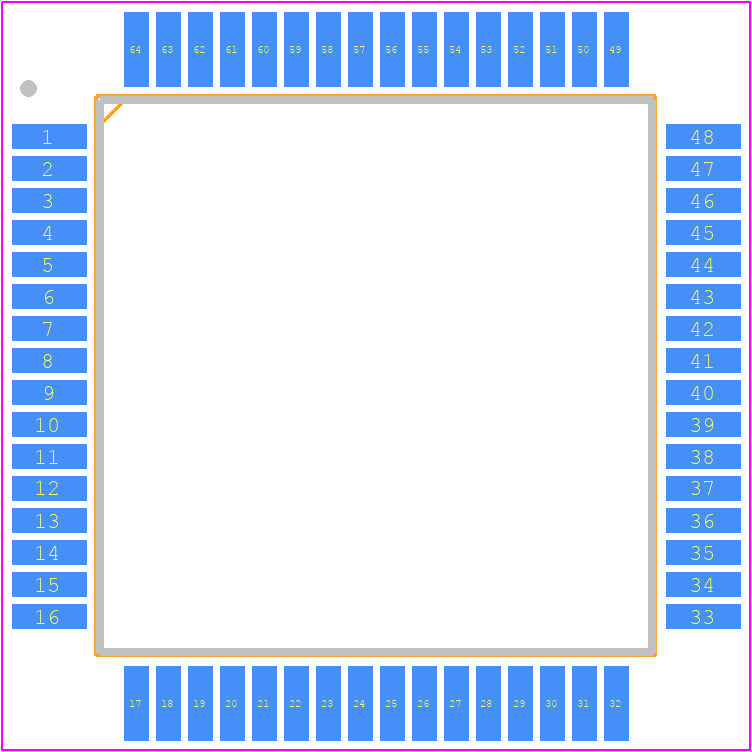

MC908MR32CFUE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 64LD QFP (14X14)
click to zoom
3D Models
MC908MR32CFUE - NXP - 3D model - Quad Flat Packages - 64LD QFP (14X14)
click to zoom

MC908MR32CFUE Details

  • Manufacturer Part Number:

    MC908MR32CFUE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    14 X 14 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, PLASTIC, QFP-64

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    8

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    44

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.4 mm

  • Speed:

    8 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC908MR32CFUE Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 32 kHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clock signals.
  • To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a sequence. You can configure the ADC to scan through multiple channels by setting the ADCSC2 register and enabling the ADCSC1 register.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
  • To implement a watchdog timer, you need to enable the COP (Computer Operating Properly) module and set the COP watchdog timer period using the COPCTL register. You can also use the COP to generate a reset signal to the microcontroller in case of a software fault.
  • The minimum voltage required to program the microcontroller's flash memory is 3.13 V. However, it's recommended to use a voltage of 3.3 V or higher to ensure reliable programming.
