MC908QY4ACDWER - NXP

Description: HC08 HC08 Microcontroller IC 8-Bit 8MHz 4KB (4K x 8) FLASH 16-SOIC

Download MC908QY4ACDWER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

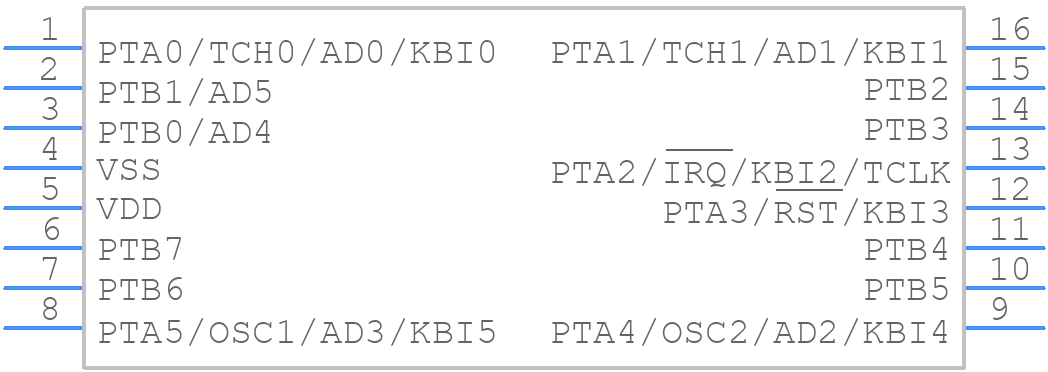

Symbol
MC908QY4ACDWER - NXP - PCB symbol
click to zoom
PCB Footprints
MC908QY4ACDWER - NXP PCB footprint - Small Outline Packages - Small Outline Packages - 16LD SOIC W
click to zoom
3D Models
MC908QY4ACDWER - NXP - 3D model - Small Outline Packages - 16LD SOIC W
click to zoom

MC908QY4ACDWER Details

  • Manufacturer Part Number:

    MC908QY4ACDWER

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    1.27 MM PITCH, LEAD FREE, PLASTIC, MS-013AA, SOIC-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V SUPPLY AT 4 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    14

  • Number of Terminals:

    16

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC908QY4ACDWER Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clock signals.
  • The watchdog timer can be configured using the WDTCSR register. You need to set the WDTON bit to enable the watchdog timer, and then set the WDP bits to select the timeout period. You can also use the WDTCSR register to clear the watchdog timer.
  • The COP module is a watchdog timer that monitors the operation of the microcontroller. It can be used to detect and recover from system failures, such as software crashes or hangs. The COP module can be configured to reset the microcontroller or generate an interrupt if a fault is detected.
  • The SCI module is used for asynchronous serial communication. You need to configure the SCI control register (SCICR) to set the baud rate, data bits, and stop bits. Then, you can use the SCI data register (SCIDR) to transmit and receive data.
  • The SPI module is used for synchronous serial communication between the microcontroller and external peripherals, such as flash memory or sensors. You need to configure the SPI control register (SPICR) to set the clock polarity, phase, and mode. Then, you can use the SPI data register (SPIDR) to transmit and receive data.
