MC9A12-1034 - Multicomp Pro

Description: MULTICOMP - MC9A12-1034 - HEADER, STRAIGHT, 10WAY,2.54MM

Download MC9A12-1034 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC9A12-1034 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

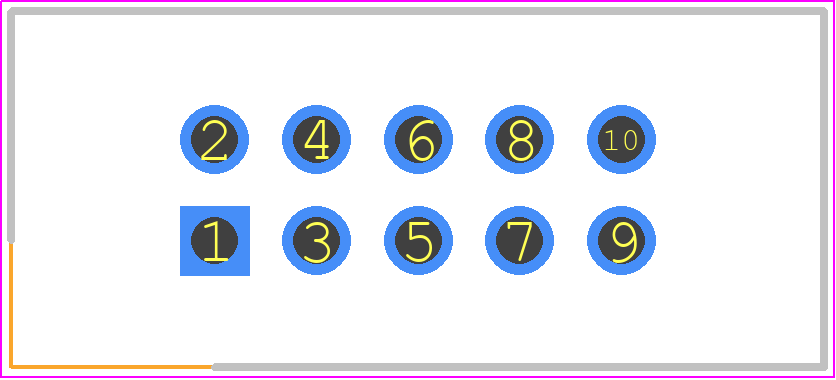

MC9A12-1034 - Multicomp Pro PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - MC9A12-1034
click to zoom
3D Models
MC9A12-1034 - Multicomp Pro - 3D model - Header, Shrouded - Straight PTH Box - MC9A12-1034
click to zoom

MC9A12-1034 Details

  • Manufacturer Part Number:

    MC9A12-1034

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (30)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL (30)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

MC9A12-1034 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MC9A12-1034 is -40°C to 125°C.
  • To ensure reliability in high-vibration environments, it's recommended to use a robust PCB design, secure the component with a suitable adhesive, and consider using a vibration-dampening material.
  • The maximum power dissipation of the MC9A12-1034 is 1.5W. It's essential to ensure proper thermal management to prevent overheating.
  • While the MC9A12-1034 is designed to operate in a variety of environments, it's recommended to take precautions in humid environments. Consider using a moisture-resistant coating or conformal coating to protect the component.
  • To prevent ESD damage, handle the MC9A12-1034 with an anti-static wrist strap or mat, and ensure that the workspace is ESD-protected.
