Part Image

MC9A12-2034 - Multicomp Pro

Description: MULTICOMP PRO - MC9A12-2034 - Wire-To-Board Connector, 2.54 mm, 20 Contacts, Header, Through Hole, 2 Rows

Download MC9A12-2034 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC9A12-2034 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

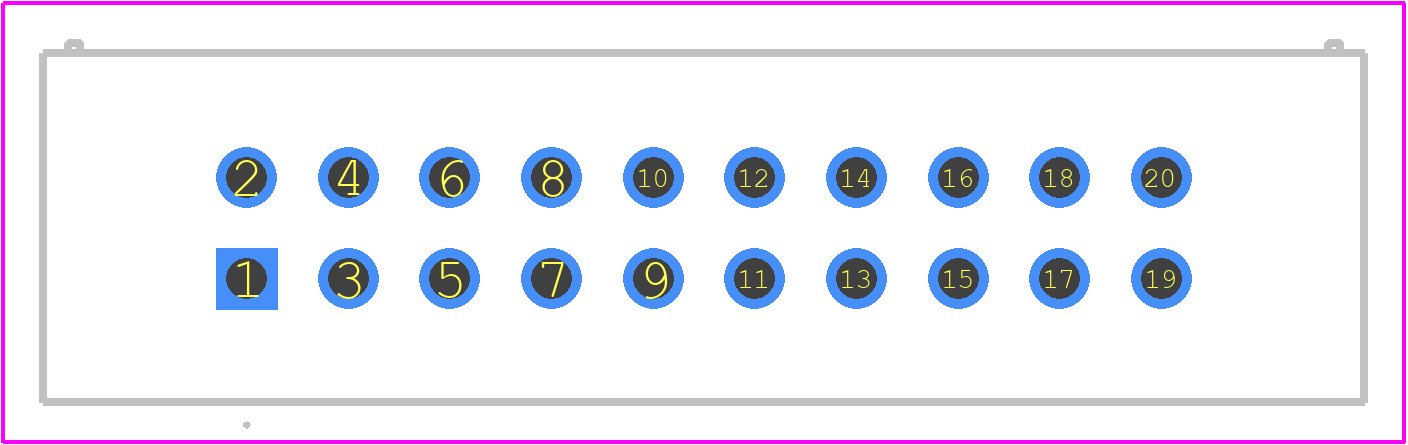

MC9A12-2034 - Multicomp Pro PCB footprint - Other - Other - MC9A12-2034-4
click to zoom
3D Models
MC9A12-2034 - Multicomp Pro - 3D model - Other - MC9A12-2034-4
click to zoom

MC9A12-2034 Details

  • Manufacturer Part Number:

    MC9A12-2034

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (30)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL (30)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

MC9A12-2034 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MC9A12-2034 is -40°C to 125°C.
  • To ensure reliability in high-vibration environments, it's recommended to follow proper mounting and soldering techniques, and consider using a vibration-dampening material or a shock-absorbing mounting system.
  • The maximum power dissipation for the MC9A12-2034 is 1.5W. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • While the MC9A12-2034 is designed to operate in a variety of environments, it's recommended to take precautions in humid environments. Consider using a conformal coating or potting the device to protect it from moisture.
  • To troubleshoot issues with the MC9A12-2034, start by reviewing the datasheet and application notes. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes or logic analyzers to debug signal issues, and consult with the manufacturer's support team if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC9A12-2034 Overview

Use the download button to access the MC9A12-2034 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9A1, or try a keyword search, such as Headers and Edge Type Connectors
