MC9RS08KA2CDB - NXP

Description: The SC9RS08KA2 Series microcontroller unit (MCU) is an extremely low-cost, small pin count device for home appliances, toys, and small geometry applications. This device is composed of standard on-chip modules including, a very small and highly efficient RS08 CPU core, 63 bytes RAM, 2K bytes Flash, an 8-bit modulo timer, keyboard interrupt, and analog comparator. The device is available in small 6- and 8-pin packages.

Download MC9RS08KA2CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

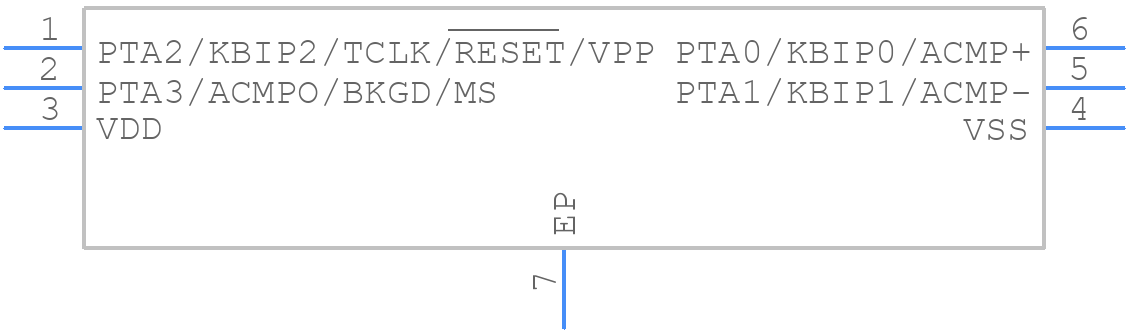

MC9RS08KA2CDB - NXP - PCB symbol
click to zoom
PCB Footprints
MC9RS08KA2CDB - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT907-3: HVSON6
click to zoom
3D Models
MC9RS08KA2CDB - NXP - 3D model - Small Outline No-lead - SOT907-3: HVSON6
click to zoom

MC9RS08KA2CDB Details

  • Manufacturer Part Number:

    MC9RS08KA2CDB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    3 X 3 MM, 1 MM HEIGHT, 0.95 MM PITCH, ROHS COMPLIANT, DFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    NO

  • Bit Size:

    8

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    4

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.11,37

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    63

  • ROM (words):

    2048

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
