- Part Number MC9S08GT60ACFBER
- Manufacturer NXP
- Pin Count 44
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP80P1320X1320X245-44N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08GT60ACFBER Details
-
Manufacturer Part Number:
MC9S08GT60ACFBER
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
10 X 10 MM, 2 MM HEIGHT, 0.8 MM PITCH, QFP-44
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
MC9S08GT60ACFBER Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clock signals.
-
To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a sequence. You can configure the ADC to scan through multiple channels by setting the ADCSC2 register and enabling the ADCSC1 register.
-
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
-
To implement a watchdog timer, you need to enable the COP (Computer Operating Properly) module and set the COP watchdog timer period using the COPCTL register. You can also use the COP to generate a reset signal to the microcontroller in case of a fault.
-
The minimum voltage range for the VDD power supply is 2.7V and the maximum voltage range is 5.5V. It's recommended to operate the microcontroller within the recommended voltage range of 3.0V to 5.0V for optimal performance and reliability.
Trust Checks
System Verified
MC9S08GT60ACFBER Overview

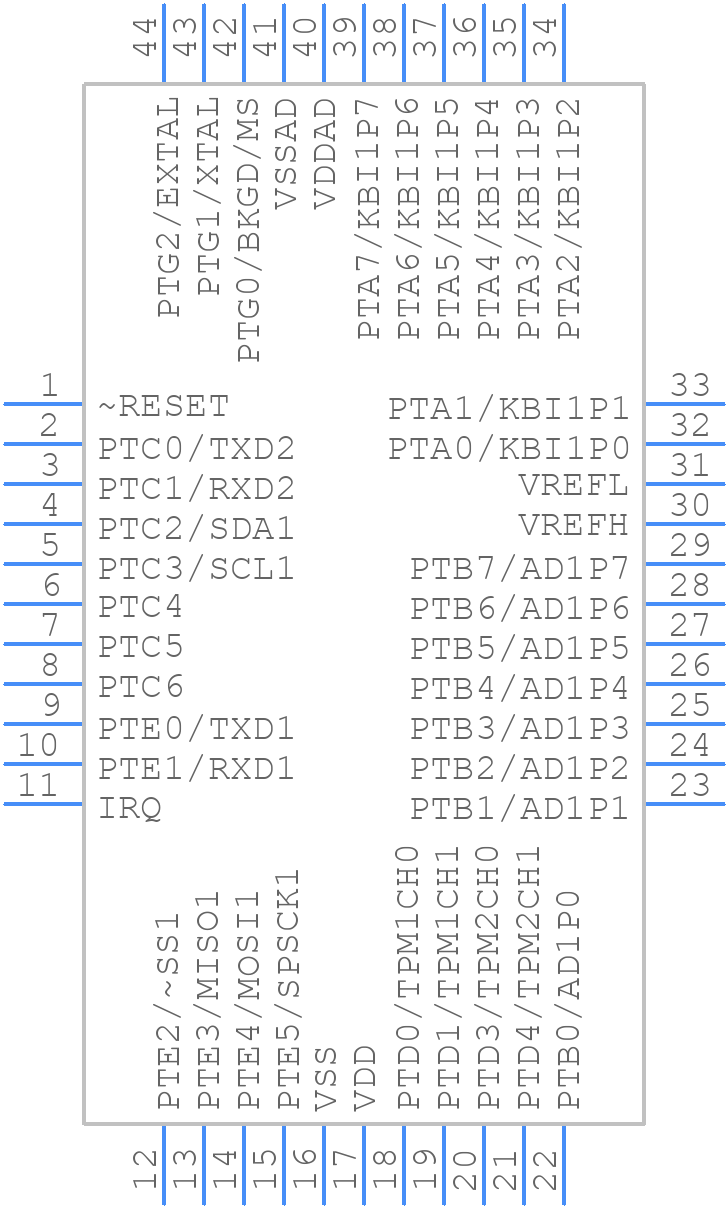

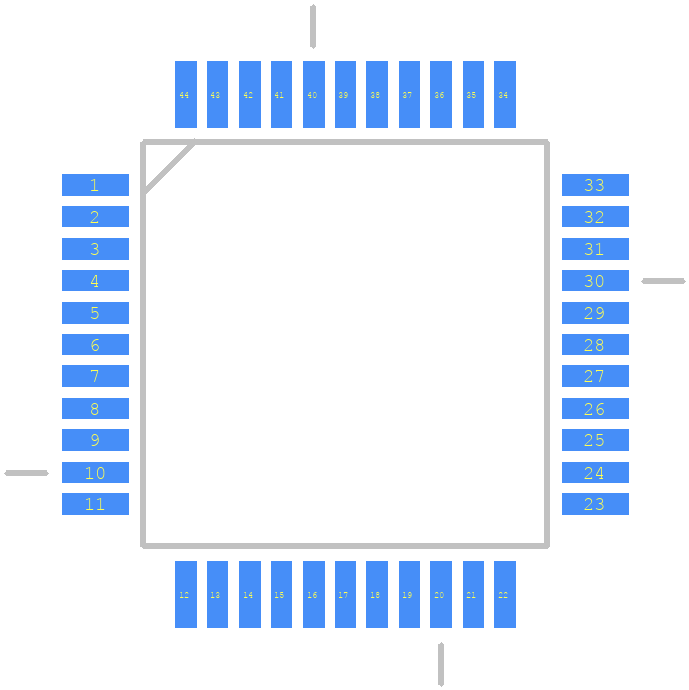

Use the download button to access the MC9S08GT60ACFBER schematic symbol and PCB footprint.
