MC9S08PA4VWJ - NXP

Description: Freescale MC9S08PA4VWJ, 8bit S08 Microcontroller, 20MHz, 4 kB Flash, 20-Pin SOIC

Download MC9S08PA4VWJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

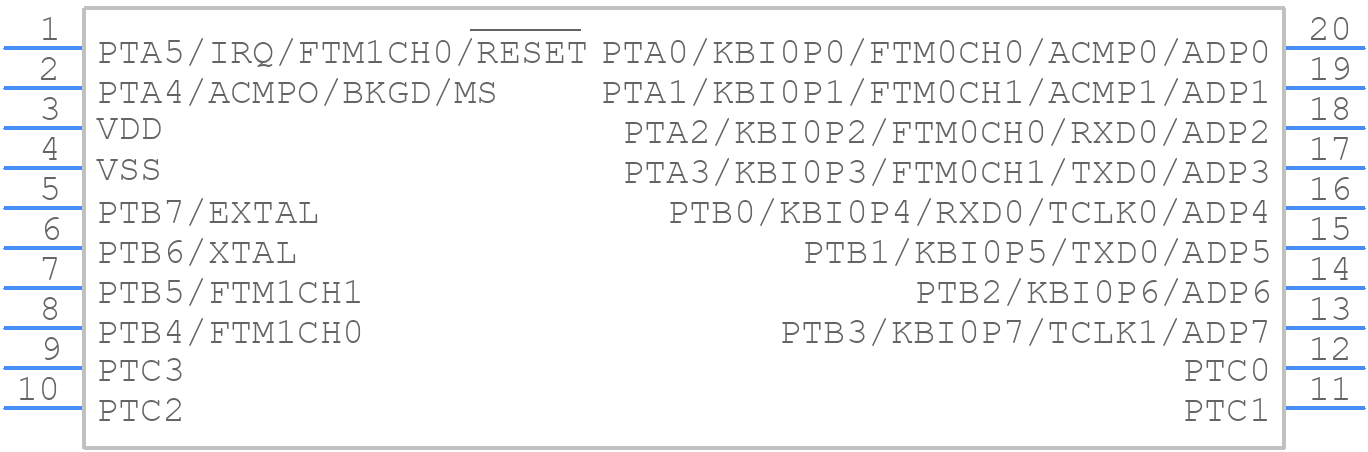

MC9S08PA4VWJ - NXP - PCB symbol
click to zoom
PCB Footprints
MC9S08PA4VWJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT163-5
click to zoom
3D Models
MC9S08PA4VWJ - NXP - 3D model - Small Outline Packages - SOT163-5
click to zoom

MC9S08PA4VWJ Details

  • Manufacturer Part Number:

    MC9S08PA4VWJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-20

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    HCS08

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    18

  • Number of Terminals:

    20

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    512

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Speed:

    20 MHz

  • Supply Current-Max:

    7.41 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC9S08PA4VWJ Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
  • To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a sequence. You can configure the ADC to scan through multiple channels by setting the ADCSC2 register and enabling the ADCSC1 register.
  • The COP watchdog timer is used to monitor the microcontroller's operation and reset it if it fails to respond within a specified time period. This is useful in applications where the microcontroller needs to recover from a fault or error condition.
  • To use the SCI module for asynchronous serial communication, you need to configure the SCI control registers (SCIC1, SCIC2, and SCIC3) to set the baud rate, data bits, parity, and stop bits. You also need to enable the SCI transmitter and receiver by setting the SCIC1 register.
  • The PM module is used to manage the microcontroller's power consumption. It allows you to control the clock frequency, voltage regulator, and power modes (such as wait, stop, and reduced power modes) to optimize power consumption and reduce energy waste.
