MC9S08PT32VLC footprint, schematic symbol and 3D model by NXP

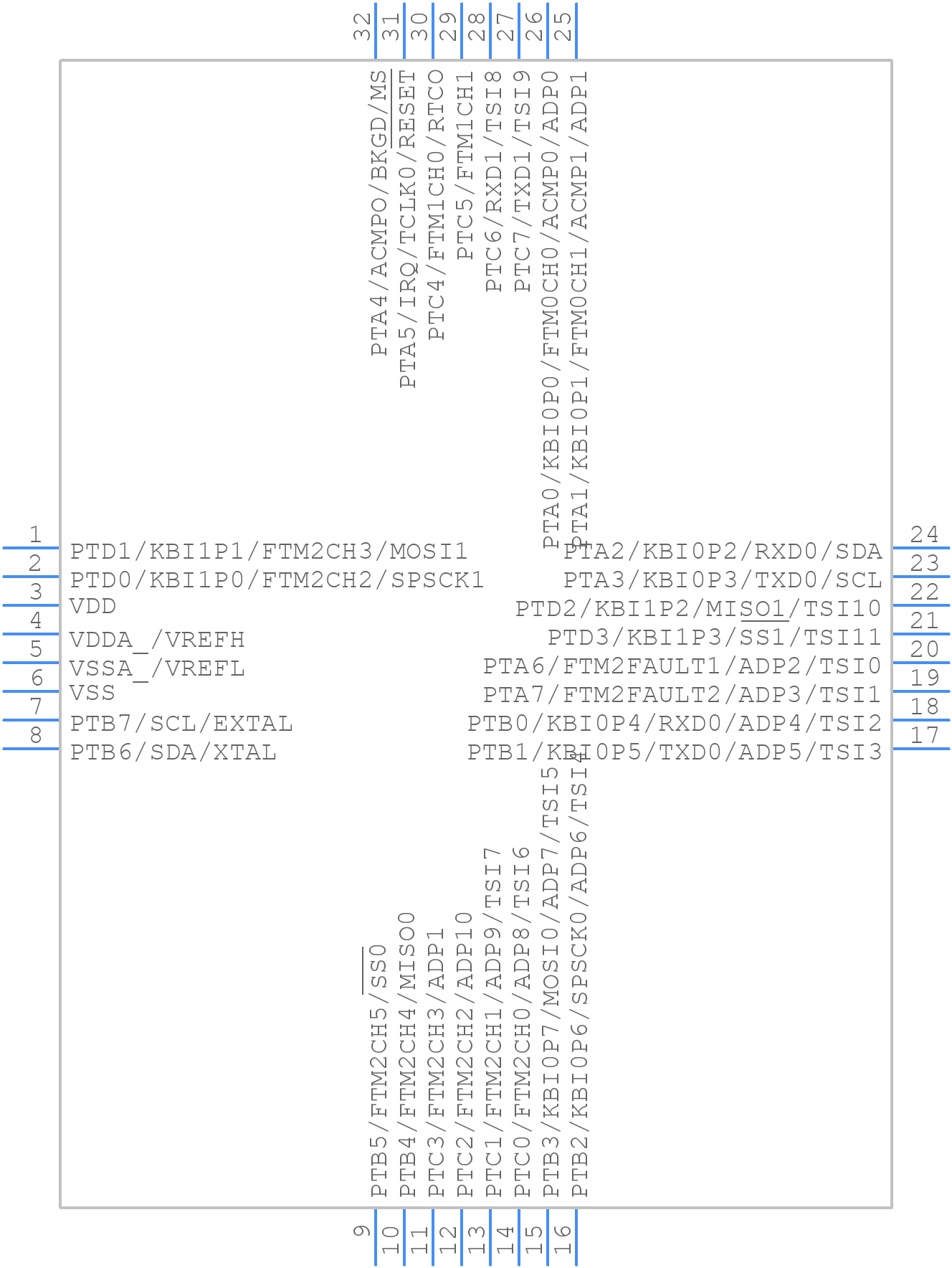

Symbol

click to zoom

PCB Footprints

MC9S08PT32VLC - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-LQFP (7x7)_2020

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC9S08PT32VLC
Part Number MC9S08PT32VLC
Manufacturer NXP
Pin Count 32
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 32-LQFP (7x7)_2020
Released Date Dec 18, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MC9S08PT32VLC Details

Manufacturer Part Number:
MC9S08PT32VLC
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Country Of Origin:
Mainland China, Malaysia
HTS Code:
8542.31.00.01
Factory Lead Time:
13 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
3.38
Has ADC:
YES
Bit Size:
8
CPU Family:
HCS08
Clock Frequency-Max:
20 MHz
DMA Channels:
NO
JESD-30 Code:
S-PQFP-G32
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
28
Number of Terminals:
32
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Equivalence Code:
QFP32,.35SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
RAM (bytes):
4096
ROM (words):
32768
ROM Programmability:
FLASH
Speed:
20 MHz
Supply Current-Max:
14.8 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
40
Width:
7 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

MC9S08PT32VLC Frequently Asked Questions (FAQs)

The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
To configure the watchdog timer to reset the MCU, set the WDT_C1[WDT] bit to 1, and then set the WDT_C2[WDTS] bits to select the timeout period. Make sure to periodically refresh the watchdog timer by writing a 0x01 to the WDT_C1[WDT] bit to prevent a reset.
Yes, the ADC can be used in low-power modes, but it's recommended to use the ADC in Stop mode (VLLS3) or Very-Low-Leakage-Stop mode (VLLS3) to minimize power consumption. However, the ADC clock frequency should be reduced to 125 kHz or lower to ensure accurate conversions.
To implement a delay function using the TPM module, configure the TPM as a free-running counter, and then use the TPM counter value to generate a delay. You can use the TPM_C0V register to read the counter value and calculate the delay based on the clock frequency.
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.

Trust Checks

Community Provided

System Verified

Community Approved

MC9S08PT32VLC Overview

Use the download button to access the MC9S08PT32VLC schematic symbol and PCB footprint.
