MC9S08SE8CWL - NXP

Description: 8-bit Microcontrollers - MCU LO COST 8 BIT 5V MCU

Download MC9S08SE8CWL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

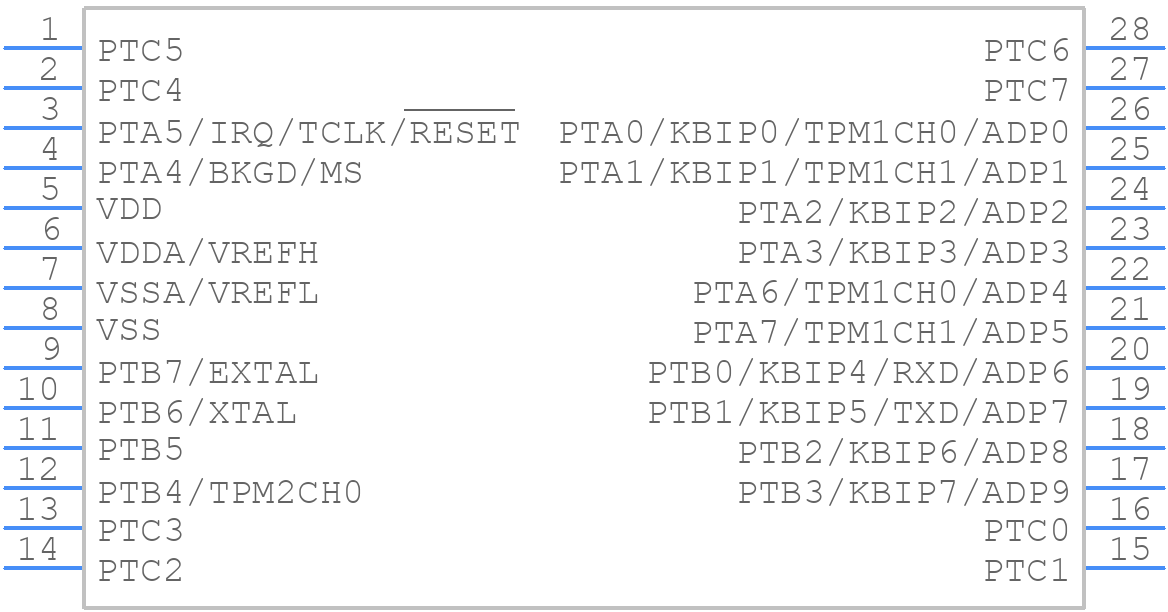

Symbol
MC9S08SE8CWL - NXP - PCB symbol
click to zoom
PCB Footprints
MC9S08SE8CWL - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO28 (SOT136-3)
click to zoom
3D Models
MC9S08SE8CWL - NXP - 3D model - Small Outline Packages - SO28 (SOT136-3)
click to zoom

MC9S08SE8CWL Details

  • Manufacturer Part Number:

    MC9S08SE8CWL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-28

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    HCS08

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.925 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    24

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    512

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC9S08SE8CWL Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
  • To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a sequence. You need to configure the ADC control registers to select the channels, set the conversion sequence, and enable the scan mode.
  • The COP watchdog timer is a safety feature that resets the microcontroller if it fails to periodically reset the COP timer. This ensures that the microcontroller is operating properly and prevents it from getting stuck in an infinite loop or malfunctioning.
  • To use the SCI module, you need to configure the SCI control registers to set the baud rate, data bits, stop bits, and parity. You also need to enable the transmitter and receiver modules and use the SCI interrupt handlers to transmit and receive data.
  • The PM module is used to manage the power consumption of the microcontroller. It allows you to control the clock frequency, voltage regulator, and power modes (such as wait, stop, and reduced power modes) to minimize power consumption and extend battery life.
