- Part Number MC9S08SH8CTJ
- Manufacturer NXP
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 9
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08SH8CTJ Details
-
Manufacturer Part Number:
MC9S08SH8CTJ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
TSSOP-20
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
MC9S08SH8CTJ Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
-
To configure the watchdog timer to reset the MCU, set the WDT_CTL register to enable the watchdog timer and set the timeout period using the WDT_TOV register. Make sure to periodically refresh the watchdog timer using the WDT_FTW register to prevent a reset.
-
The VLLS mode is a low-power mode that reduces power consumption to a minimum. In this mode, the MCU's voltage regulator is disabled, and the internal oscillator is stopped. The VLLS mode is useful for applications that require extremely low power consumption during standby or sleep modes.
-
To use the ADC module, configure the ADC_SC1 register to select the analog input channel and set the ADC_SC2 register to enable the ADC. Then, start the ADC conversion using the ADC_SC3 register and wait for the conversion to complete. The converted digital value can be read from the ADC_R register.
-
The COP module is a watchdog timer that monitors the MCU's operation and resets the MCU if it fails to respond within a specified time period. This ensures that the MCU is operating correctly and prevents it from getting stuck in an infinite loop or other abnormal conditions.
Trust Checks
System Verified
MC9S08SH8CTJ Overview

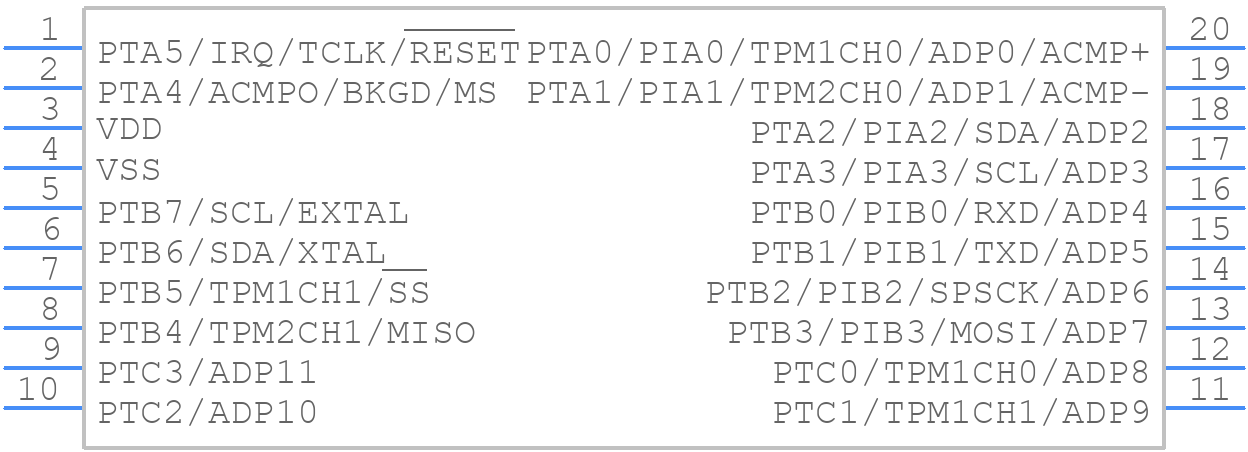

Use the download button to access the MC9S08SH8CTJ schematic symbol, PCB footprint, and 3D model.
