- Part Number MC9S08SV16CLC
- Manufacturer NXP
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP80P900X900X160-32N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08SV16CLC Details
-
Manufacturer Part Number:
MC9S08SV16CLC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
7 X 7 MM, 1.40 MM HEIGHT, 0.80 MM PITRCH, ROHS COMPLIANT, MS-026BBA, LQFP-32
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Has ADC:
YES
-
Bit Size:
8
MC9S08SV16CLC Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it's recommended to use a crystal oscillator for frequencies above 8 MHz for better accuracy and stability.
-
To configure the watchdog timer, you need to set the WDTCLK register to select the clock source, set the WDTCNT register to set the timeout period, and enable the watchdog timer by setting the WDTEN bit in the WDTCTL register. You can also use the WDT reset flag to detect when a watchdog reset has occurred.
-
Yes, the MC9S08SV16CLC has a 12-bit ADC with 12 channels, which can be used to convert analog signals from sensors. However, the ADC has a limited input range of 0 to VREF (typically 3.3V), so you may need to use an external voltage divider or amplifier to condition the sensor signals.
-
The MC9S08SV16CLC has several low-power modes, including Stop, Wait, and Doze modes. To implement a low-power mode, you need to set the appropriate bits in the PMCTL register, disable any unnecessary peripherals, and use the BCSR register to control the clock gating. You can also use the LPM (Low Power Mode) instruction to enter a low-power mode.
-
Yes, the MC9S08SV16CLC has a UART module that can be used for asynchronous serial communication with a PC or other devices. You need to configure the UART registers to set the baud rate, data bits, parity, and stop bits, and use the UART interrupts to handle the transmission and reception of data.
Trust Checks
System Verified
MC9S08SV16CLC Overview

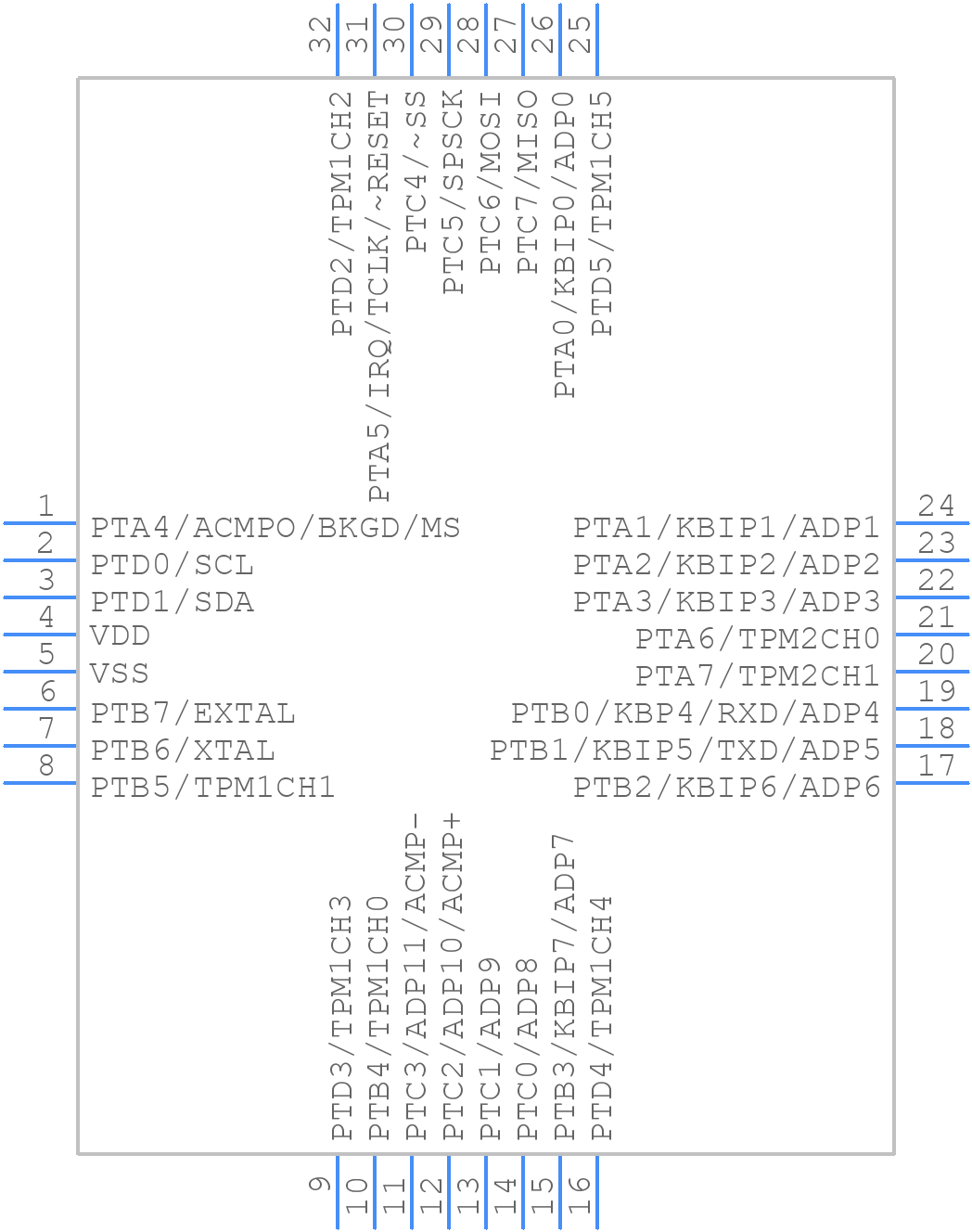

Use the download button to access the MC9S08SV16CLC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
