- Stock & Prices $ Price & Stock for MC9S12E128CFUE
- Part Number MC9S12E128CFUE
- Manufacturer NXP
- Pin Count 80
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - MC9S12P128MQK
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S12E128CFUE Details
-
Manufacturer Part Number:
MC9S12E128CFUE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
PLASTIC, QFP-80
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
6
-
Has ADC:
YES
MC9S12E128CFUE Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 25 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
-
To configure the watchdog timer to reset the MCU, set the WDTCSR register to enable the watchdog timer and set the timeout period using the WDTPR register. Make sure to clear the WDTCSR register before enabling the watchdog timer to avoid an immediate reset.
-
Yes, the MC9S12E128CFUE has 128 KB of internal flash memory that can be used to store data. However, keep in mind that the flash memory has a limited number of erase cycles, so it's recommended to use it for storing configuration data or firmware updates rather than frequently changing data.
-
To implement a bootloader using the MCU's internal flash memory, you'll need to reserve a portion of the flash memory for the bootloader code and configure the MCU to boot from that location. You'll also need to implement a communication protocol to transfer the firmware update to the MCU. Consult the MCU's datasheet and application notes for more information.
-
The maximum current that can be sourced or sunk by the MCU's GPIO pins is 25 mA per pin. However, the total current sourced or sunk by all GPIO pins should not exceed 200 mA to avoid overheating the MCU.
Trust Checks
System Verified
MC9S12E128CFUE Overview

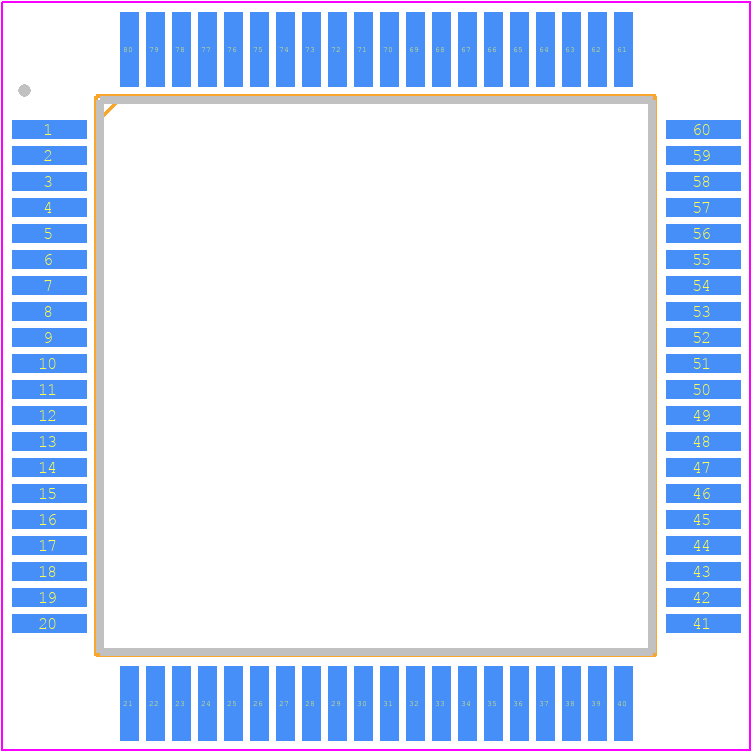

Use the download button to access the MC9S12E128CFUE schematic symbol, PCB footprint, and 3D model.
