MC9S12XDG128MAL - NXP

MC9S12XDG128MAL Details

• Manufacturer Part Number:

  MC9S12XDG128MAL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

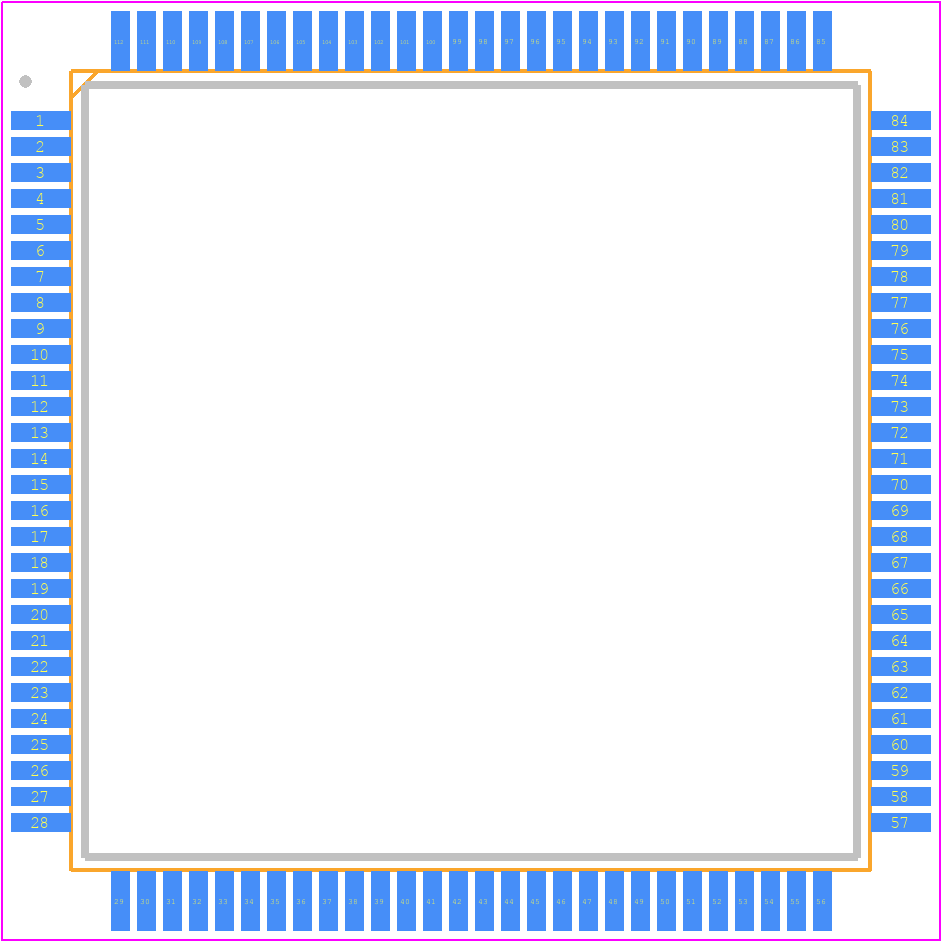

  LEAD FREE, LQFP-112

• Country Of Origin:

  Malaysia

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  IT ALSO REQUIRES 5 V SUPPLY

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  CPU12

• Clock Frequency-Max:

  80 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G112

• JESD-609 Code:

  e3

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  91

• Number of Terminals:

  112

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Equivalence Code:

  QFP112,.87SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  12288

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  40 MHz

• Supply Voltage-Max:

  2.75 V

• Supply Voltage-Min:

  2.35 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
