The maximum clock frequency of the MC9S12XF512MLM is 50 MHz.
The internal oscillator on the MC9S12XF512MLM can be configured using the OSCCTL register. The oscillator frequency can be set to 4 MHz, 8 MHz, or 16 MHz.
The COP timer is a watchdog timer that resets the microcontroller if it does not receive a 'kick' signal within a specified time period. This is used to prevent the microcontroller from getting stuck in an infinite loop or other abnormal operation.
The SCI module on the MC9S12XF512MLM is used for asynchronous serial communication. It can be configured using the SCI registers (SCIBDH, SCIBDL, SCIC1, SCIC2, etc.). The SCI module can operate in normal mode, multiprocessor mode, or single-wire mode.
The PLL on the MC9S12XF512MLM is used to multiply the clock frequency of the internal oscillator or an external clock source. This allows the microcontroller to operate at a higher frequency than the input clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC9S12XF512MLM Overview

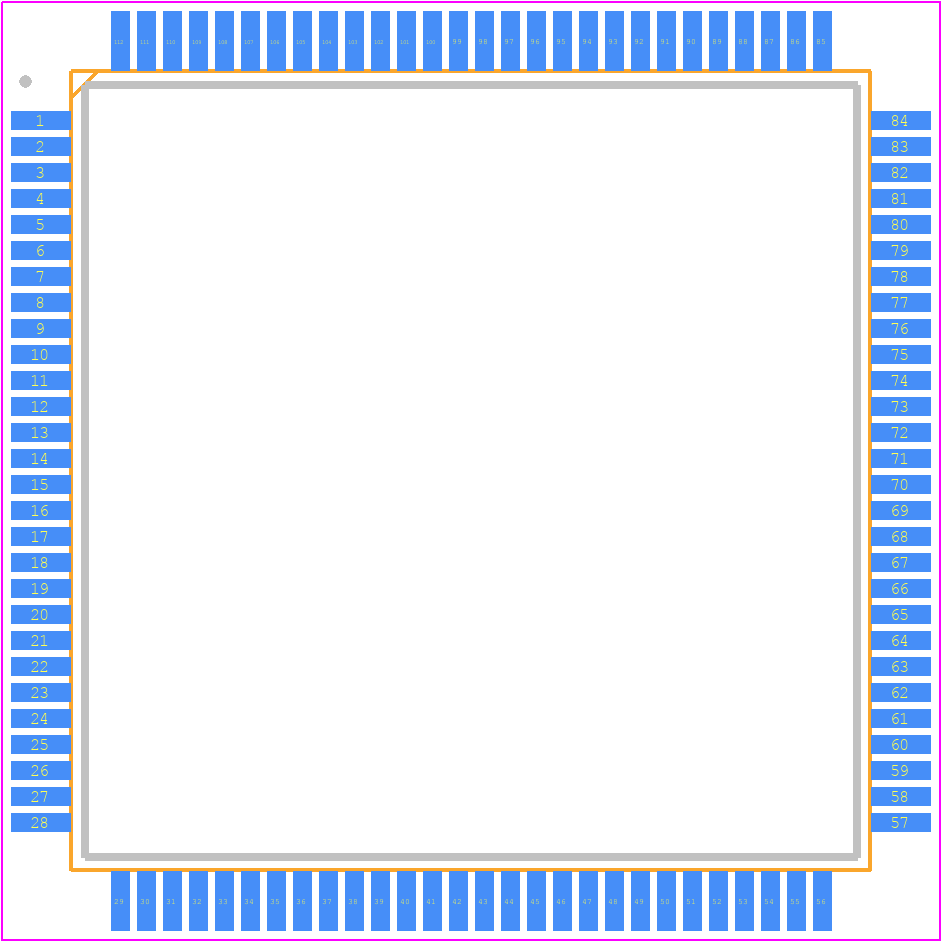

Use the download button to access the MC9S12XF512MLM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S1,
or try a keyword search, such as Microcontrollers
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
