MCA1-113H+ - Mini-Circuits

Description: Level 17, SMT Double Balanced Mixer, RF/LO Freq 3800 - 11000 MHz 200 mW,40 mA -55°C to 100°C

Download MCA1-113H+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

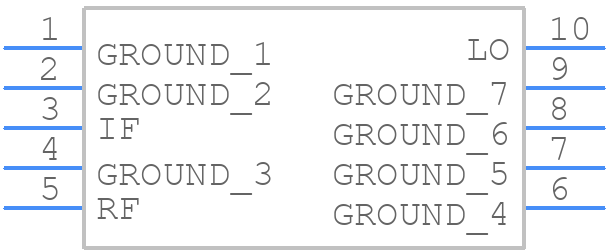

MCA1-113H+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MCA1-113H+ - Mini-Circuits PCB footprint - Other - Other - DZ885_2025
click to zoom
3D Models
MCA1-113H+ - Mini-Circuits - 3D model - Other - DZ885_2025
click to zoom

MCA1-113H+ Details

  • Manufacturer Part Number:

    MCA1-113H+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CERAMIC, CASE DZ885, 10 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HIGH ISOLATION

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.8 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    11000 MHz

  • Operating Frequency-Min:

    3800 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    FL10,.24

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    5.02
