MCA1101-20-5 - ACEINNA

Description: Board Mount Current Sensors High Accuracy 20A Current Sensor, 5V, Fixed gain, 1.5MHz 3dB BW, OCP, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16

Download MCA1101-20-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

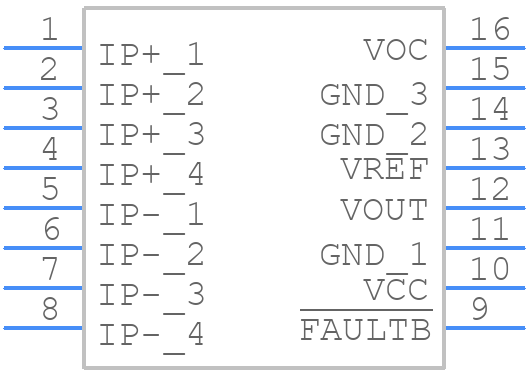

MCA1101-20-5 - ACEINNA - PCB symbol
click to zoom
PCB Footprints
MCA1101-20-5 - ACEINNA PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOIC
click to zoom
3D Models
MCA1101-20-5 - ACEINNA - 3D model - Small Outline Packages - 16-pin SOIC
click to zoom

MCA1101-20-5 Details

  • Manufacturer Part Number:

    MCA1101-20-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Aceinna

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    2.164-2.185V

  • Output Type:

    ANALOG CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

MCA1101-20-5 Frequently Asked Questions (FAQs)

  • Aceinna recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the sensor. Keep the sensor away from high-frequency components and ensure good thermal management.
  • The MCA1101-20-5 is designed to withstand vibrations up to 10g and shocks up to 50g. However, it's recommended to follow proper mounting and installation procedures to ensure optimal performance.
  • Aceinna recommends a 2-point calibration procedure, where the sensor is calibrated at 0g and 1g. The calibration process should be performed in a temperature-controlled environment.
  • The MCA1101-20-5 is specified to operate from -40°C to 125°C. Temperature changes can affect the sensor's sensitivity and offset. It's recommended to temperature-compensate the sensor using the built-in temperature sensor or an external temperature sensor.
  • The MCA1101-20-5 uses a SPI interface for communication. Aceinna recommends using a clock frequency of 1-10 MHz and a data transfer rate of 1-10 Mbps.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCA1101-20-5 Overview

Use the download button to access the MCA1101-20-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCA11, or try a keyword search, such as Other Sensors/Transducers
