MCA1101-5-5 - ACEINNA

Description: Board Mount Current Sensors High Accuracy 5A Current Sensor, 5V, Fixed gain, 1.5MHz 3dB BW, OCP, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16

Download MCA1101-5-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

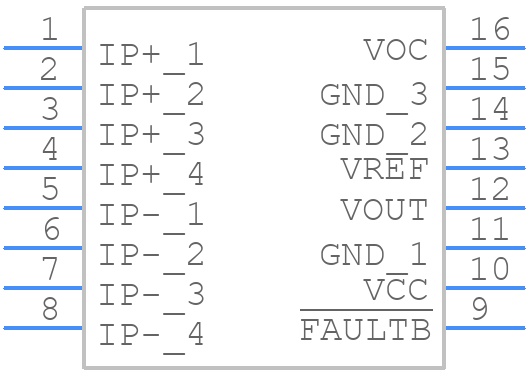

MCA1101-5-5 - ACEINNA - PCB symbol
click to zoom
PCB Footprints
MCA1101-5-5 - ACEINNA PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead SOIC
click to zoom
3D Models
MCA1101-5-5 - ACEINNA - 3D model - Small Outline Packages - 16 Lead SOIC
click to zoom

MCA1101-5-5 Details

  • Manufacturer Part Number:

    MCA1101-5-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Aceinna

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    2.164-2.185V

  • Output Type:

    ANALOG CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

MCA1101-5-5 Frequently Asked Questions (FAQs)

  • Aceinna provides a recommended PCB layout and design guidelines document that includes information on component placement, routing, and grounding to ensure optimal performance of the MCA1101-5-5. It's recommended to follow these guidelines to minimize noise and interference.
  • Aceinna provides a calibration guide that outlines the steps to calibrate the MCA1101-5-5 for specific applications. The guide includes information on how to perform a factory calibration, as well as how to perform a user calibration using the Aceinna Calibration Tool.
  • The recommended power-up sequence for the MCA1101-5-5 is to first apply power to the VDD pin, followed by the VDD_IO pin. This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device.
  • Aceinna provides a troubleshooting guide that outlines common issues and their solutions. The guide includes information on how to identify and fix issues related to noise, inaccurate readings, and other common problems.
  • The MCA1101-5-5 is rated to operate over a temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
