MCA1101-50-3 - ACEINNA

Description: Board Mount Current Sensors High Accuracy +/-50A Current Sensor, 3.3V, Fixed gain, 1.5MHz 3dB BW, OCD, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16

Download MCA1101-50-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

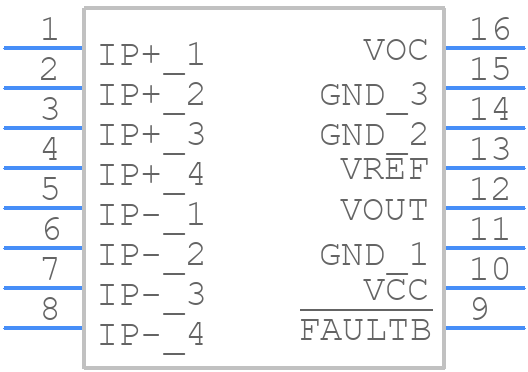

MCA1101-50-3 - ACEINNA - PCB symbol
click to zoom
PCB Footprints
MCA1101-50-3 - ACEINNA PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead SOIC
click to zoom
3D Models
MCA1101-50-3 - ACEINNA - 3D model - Small Outline Packages - 16 Lead SOIC
click to zoom

MCA1101-50-3 Details

  • Manufacturer Part Number:

    MCA1101-50-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Malaysia

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Aceinna

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Surface Mount:

    YES

MCA1101-50-3 Frequently Asked Questions (FAQs)

  • Aceinna recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the MCA1101-50-3. Keep the sensor away from high-current carrying traces and ensure a low-impedance path to the power supply. Refer to the application note AN-001 for more details.
  • Calibration involves applying a known magnetic field and adjusting the sensor's offset and sensitivity. Aceinna provides a calibration tool and software for this purpose. Refer to the calibration guide CG-001 for step-by-step instructions.
  • The MCA1101-50-3 is rated for operation from -40°C to 125°C. However, optimal performance is achieved between 0°C to 85°C. Temperature compensation is built-in, but users may need to apply additional corrections for extreme temperatures.
  • The MCA1101-50-3 uses a standard SPI interface. Connect the sensor's SCLK, MOSI, and MISO pins to the microcontroller's or FPGA's corresponding pins. Use a level shifter if necessary. Refer to the datasheet and application notes for specific interface guidelines.
  • The MCA1101-50-3 typically consumes 10mA at 3.3V supply voltage. However, this can vary depending on the operating frequency, output data rate, and other factors. Refer to the datasheet for detailed power consumption specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCA1101-50-3 Overview

Use the download button to access the MCA1101-50-3 schematic symbol, PCB footprint, and 3D model.
