MCB1412A - CTS

Description: The MCB1412A is a ceramic waveguide bandpass filter with a 13.75 - 14.50 GHz passband. The component I/O's can interface directly to microstrip transmission lines on the top-layer of printed circuit boards, which makes this a true surface mount filter. CTS ceramic waveguide filters are fabricated using proprietary CTS ceramic formulations, but are constructed by a mature process, which provides superior performance yet competitive pricing compared to other exotic technologies that are generally required f

Download MCB1412A Model

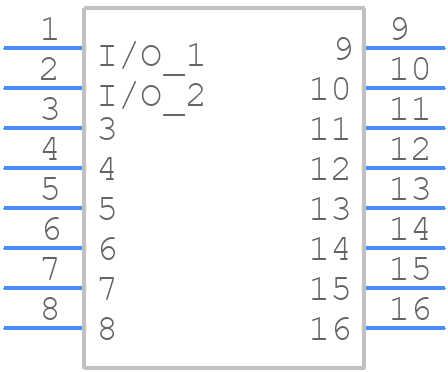

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCB1412A - CTS PCB footprint - Other - Other - 13.6 × 3.2 × 1.3
click to zoom
3D Models
MCB1412A - CTS  - 3D model - Other - 13.6 × 3.2 × 1.3
click to zoom

MCB1412A Details

  • Manufacturer Part Number:

    MCB1412A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    7

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    14125 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    1.2 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    13.4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 13 INCH

  • Width:

    2.8 mm
