MCB2007A footprint, schematic symbol and 3D model by CTS

MCB2007A - CTS

Description: The MCB2007A is a ceramic waveguide bandpass filter with a 19.20 -20.95 GHz passband. The component I/O's can interface directly to microstrip transmission lines on the top-layer of printed circuit boards, which makes this a true surface mount filter. CTS ceramic waveguide filters are fabricated using proprietary CTS ceramic formulations, but are constructed by a mature process, which provides superior performance yet competitive pricing compared to other exotic technologies that are generally required fo

Download MCB2007A Model

Schematic
symbols

PCB
footprints

3D
models

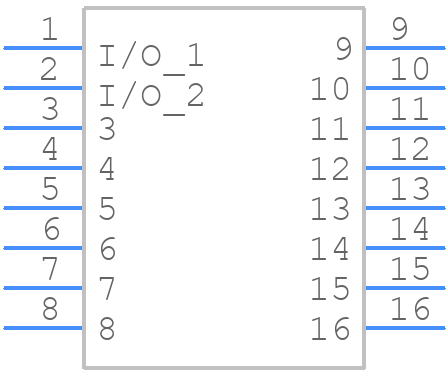

Symbol

click to zoom

PCB Footprints

MCB2007A - CTS PCB footprint - Other - Other - 13.6 × 3.2 × 1.3

click to zoom

3D Models

MCB2007A - CTS - 3D model - Other - 13.6 × 3.2 × 1.3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCB2007A
Part Number MCB2007A
Manufacturer CTS
Pin Count 16
Part Category Filter
Package Category Other
Footprint Name Other - 13.6 × 3.2 × 1.3
Released Date Mar 19, 2026
Last Modified Date Apr 17, 2026 10:34 AM UTC
Pinout / Pin List Click Here (Member Only)

MCB2007A Details

Manufacturer Part Number:
MCB2007A
Part Life Cycle Code:
Active
Manufacturer:
CTS Corporation
Filter Type:
BAND PASS FILTER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MCB2007A Overview

Use the download button to access the MCB2007A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCB20, or try a keyword search, such as General Purpose Passive Filters
