MCB2875B - CTS

Description: The MCB2875B is a ceramic waveguide bandpass filter with a 27.50 - 30.00 GHz passband. The component I/O's can interface directly to microstrip transmission lines on the top-layer of printed circuit boards, which makes this a true surface mount filter. CTS ceramic waveguide filters are fabricated using proprietary CTS ceramic formulations, but are constructed by a mature process, which provides superior performance yet competitive pricing compared to other exotic technologies that are generally required f

Download MCB2875B Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MCB2875B model

Email notifications will be applied after download.

Send part feedback

Symbol

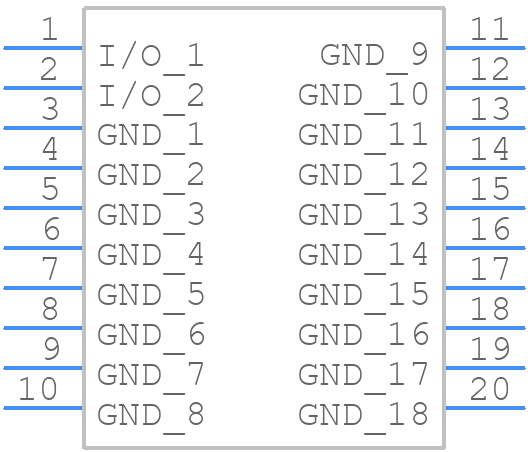

MCB2875B - CTS - PCB symbol

PCB Footprints

MCB2875B - CTS PCB footprint - Other - Other - MCB2875B

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCB2875B
Part Number MCB2875B
Manufacturer CTS
Pin Count 20
Part Category Filter
Package Category Other
Footprint Name Other - MCB2875B
Released Date Apr 13, 2026
Last Modified Date Apr 17, 2026 10:33 AM UTC
Pinout / Pin List Click Here (Member Only)

MCB2875B Details

Manufacturer Part Number:
MCB2875B
Part Life Cycle Code:
Active
Manufacturer:
CTS Corporation
Filter Type:
CERAMIC BPF
