MCCMA4-S-DC12V-C-E - Multicomp Pro

Description: RELAY, AUTOMOTIVE, SPDT, 14VDC, 30A; Coil Voltage:12VDC; Contact Current:30A; Contact Configuration:SPDT; Relay Mounting:Through Hole; Relay Terminals:Solder; Product Range:CMA4 Series; Contact Voltage DC Nom:14V; Coil RoHS Compliant: Yes

Download MCCMA4-S-DC12V-C-E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MCCMA4-S-DC12V-C-E model

Email notifications will be applied after download.

Send part feedback

Symbol

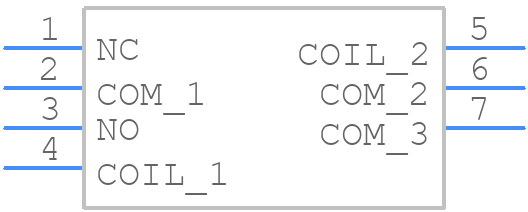

MCCMA4-S-DC12V-C-E - Multicomp Pro - PCB symbol

PCB Footprints

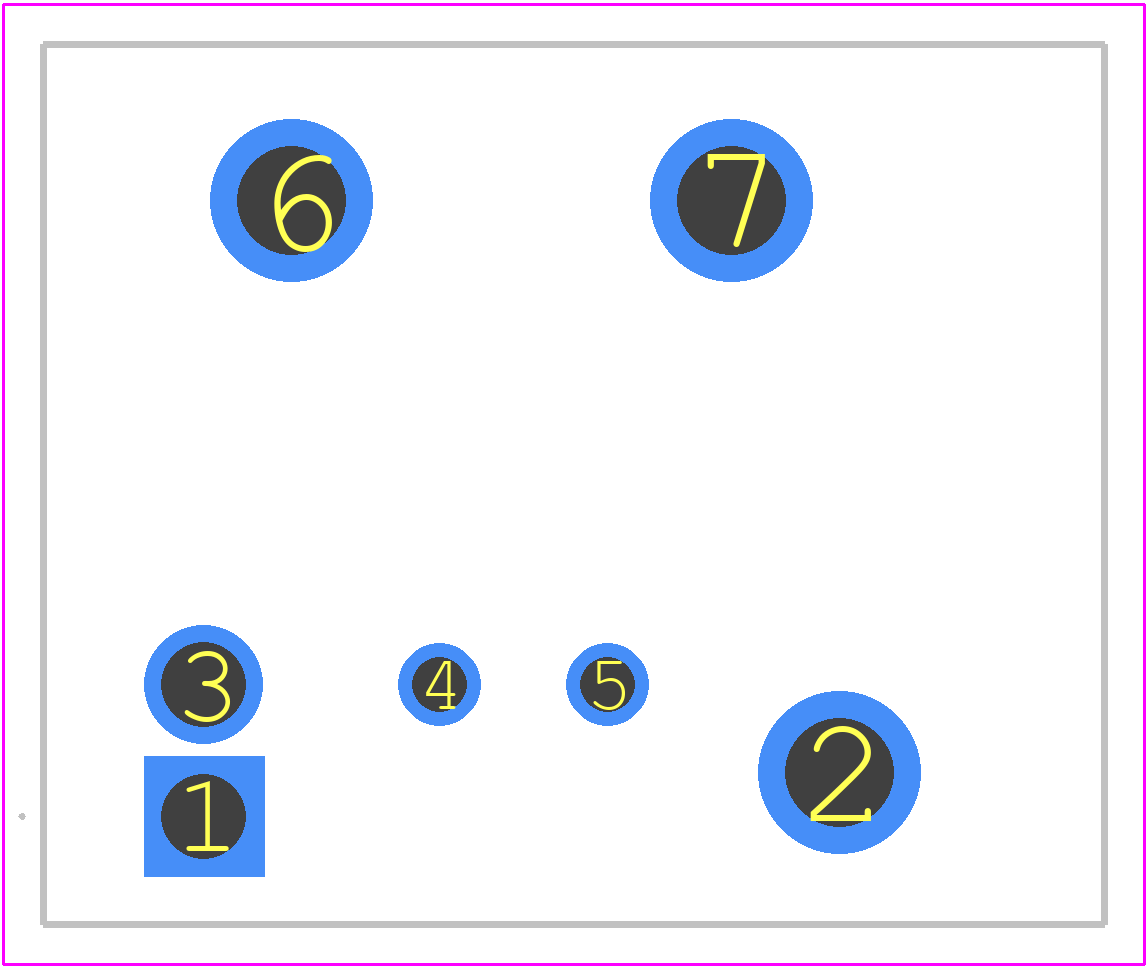

MCCMA4-S-DC12V-C-E - Multicomp Pro PCB footprint - Other - Other - MCCMA4-S-DC12V-C-E-2

3D Models

MCCMA4-S-DC12V-C-E - Multicomp Pro - 3D model - Other - MCCMA4-S-DC12V-C-E-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCCMA4-S-DC12V-C-E
Part Number MCCMA4-S-DC12V-C-E
Manufacturer Multicomp Pro
Pin Count 7
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - MCCMA4-S-DC12V-C-E-2
Released Date Aug 6, 2023
Last Modified Date Aug 7, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

MCCMA4-S-DC12V-C-E Details

Manufacturer Part Number:
MCCMA4-S-DC12V-C-E
Manufacturer:
SPC Multicomp
