MCEI-03 - Multicomp Pro

Description: MULTICOMP PRO MCEI-03DIP / SIP Switch, 3 Circuits, Slide, Through Hole, SPST, 24 VDC, 25 mA

Download MCEI-03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

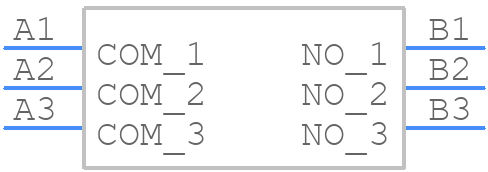

MCEI-03 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints
MCEI-03 - Multicomp Pro PCB footprint - Other - Other - MCEI-03-1
click to zoom
3D Models
MCEI-03 - Multicomp Pro - 3D model - Other - MCEI-03-1
click to zoom

MCEI-03 Details

  • Manufacturer Part Number:

    MCEI-03

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7.2

  • Body Breadth:

    6 mm

  • Body Height:

    2.8 mm

  • Body Length or Diameter:

    7.52 mm

  • Contact Current(DC)-Max:

    0.025 A

  • Contact (DC) Max Rating R Load:

    .025A@24VDC

  • Contact Voltage(DC)-Max:

    24 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    6

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Termination Type:

    SOLDER
