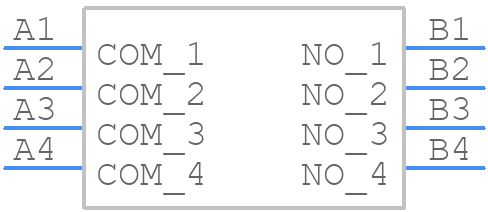

MCEMR-04-T - Multicomp Pro

MCEMR-04-T Details

• Manufacturer Part Number:

  MCEMR-04-T

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  SPC Multicomp

• YTEOL:

  7

• Actuator Color:

  WHITE

• Actuator Length:

  0.0157 inch

• Actuator Material:

  LIQUID CRYSTAL POLYMER

• Actuator Type:

  SLIDE

• Additional Feature:

  UL APPROVED,ROHS COMPLIANT

• Body Breadth:

  7.07 mm

• Body Color:

  BLACK

• Body Height:

  3.4 mm

• Body Length or Diameter:

  10.0584 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.025 A

• Contact (DC) Max Rating R Load:

  0.025A@24VDC

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  2000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  POLYETHYLENE

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYETHYLENE

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Switch Sections:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• PCB Hole Count:

  4

• Solderability:

  HAND/REFLOW/WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Material:

  BRASS

• Termination Type:

  SURFACE MOUNT
