The recommended operating temperature range for MCEPM-10 is -40°C to 125°C, although it can withstand storage temperatures from -55°C to 150°C.
To ensure proper thermal management, it is recommended to provide a heat sink or a thermal pad on the top of the device, and to keep the ambient temperature below 85°C. Additionally, avoid blocking the airflow around the device.
The maximum allowed voltage for MCEPM-10 is 10% above the rated voltage, but it is recommended to operate within the specified voltage range to ensure reliability and longevity.
Yes, MCEPM-10 is designed to withstand high-vibration environments, but it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the device.
To handle ESD protection for MCEPM-10, it is recommended to follow standard ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging. Additionally, ensure that the device is properly grounded during handling and assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCEPM-10 Overview

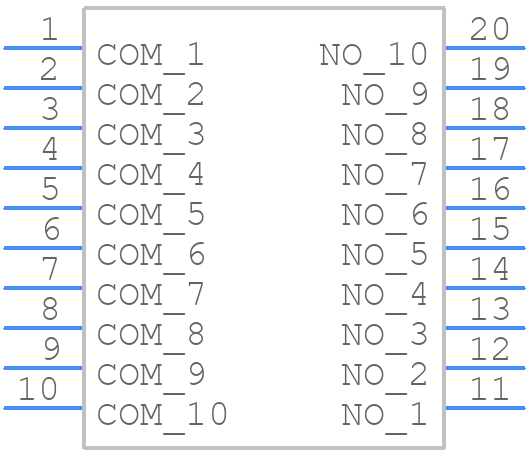

Use the download button to access the MCEPM-10 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCEPM,
or try a keyword search, such as DIP Switches
