MCF5206EAB54 - NXP

MCF5206EAB54 Details

• Manufacturer Part Number:

  MCF5206EAB54

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

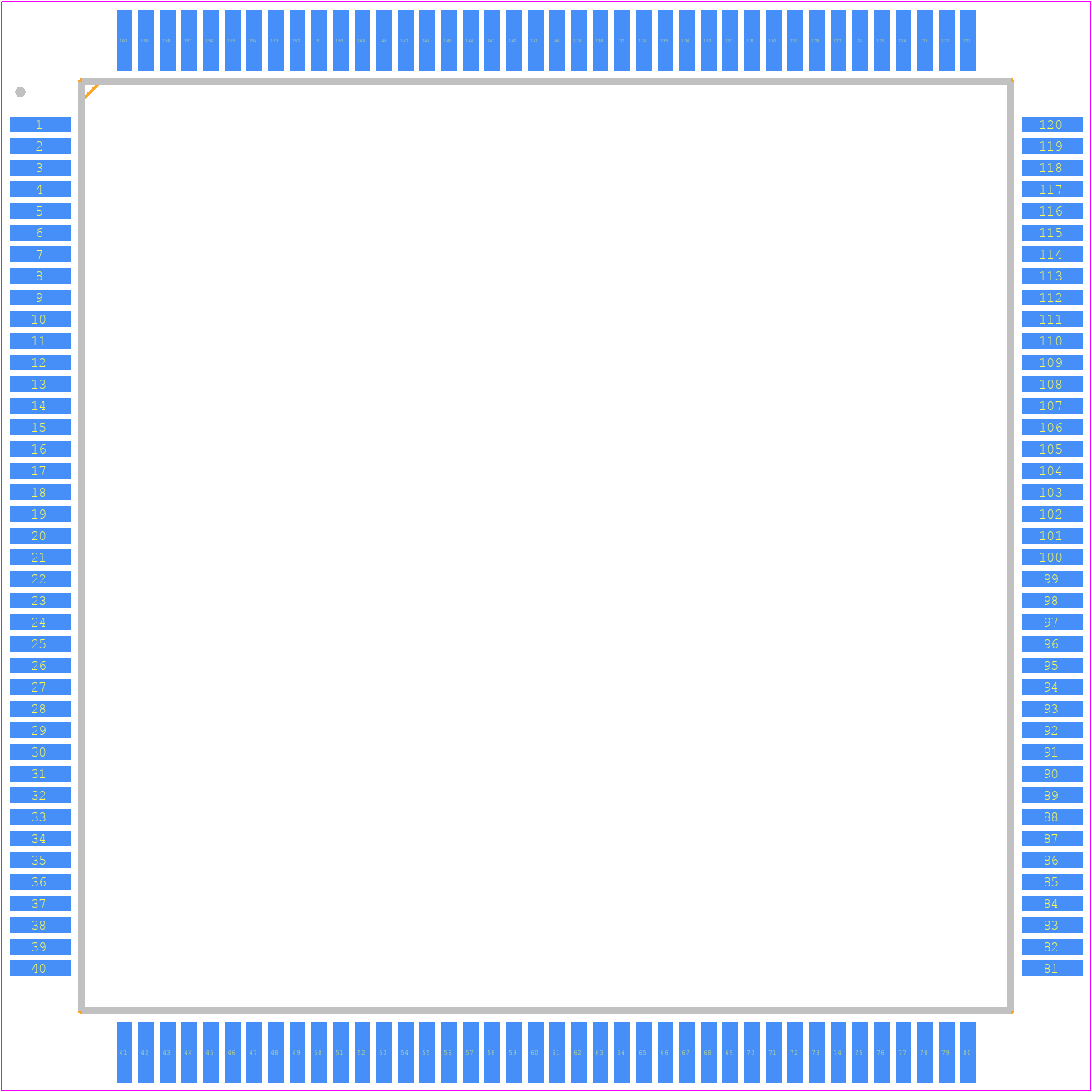

• Package Description:

  PLASTIC, QFP-160

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Address Bus Width:

  28

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  54 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G160

• JESD-609 Code:

  e3

• Length:

  28 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  160

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  3.85 mm

• Speed:

  54 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
