MCF5213CAF80 - NXP

MCF5213CAF80 Details

• Manufacturer Part Number:

  MCF5213CAF80

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

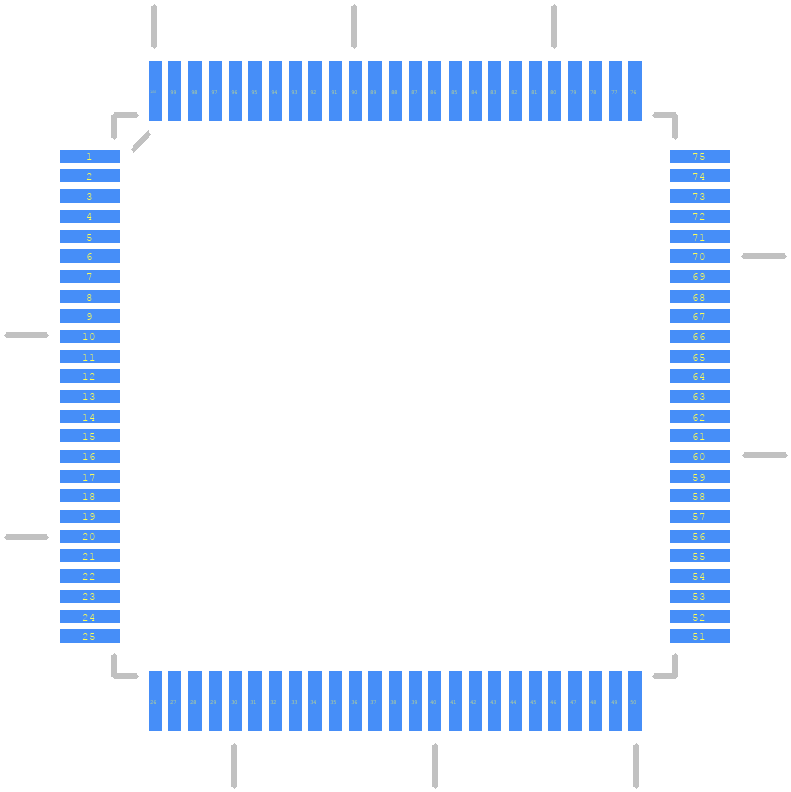

  14 X 14 MM, 1.40 MM HEIGHT, 0.50 PITCH, ROHS COMPLIANT, LQFP-100

• Country Of Origin:

  Mainland China, Malaysia

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  3

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G100

• JESD-609 Code:

  e3

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  56

• Number of Terminals:

  100

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  80 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
