Symbol

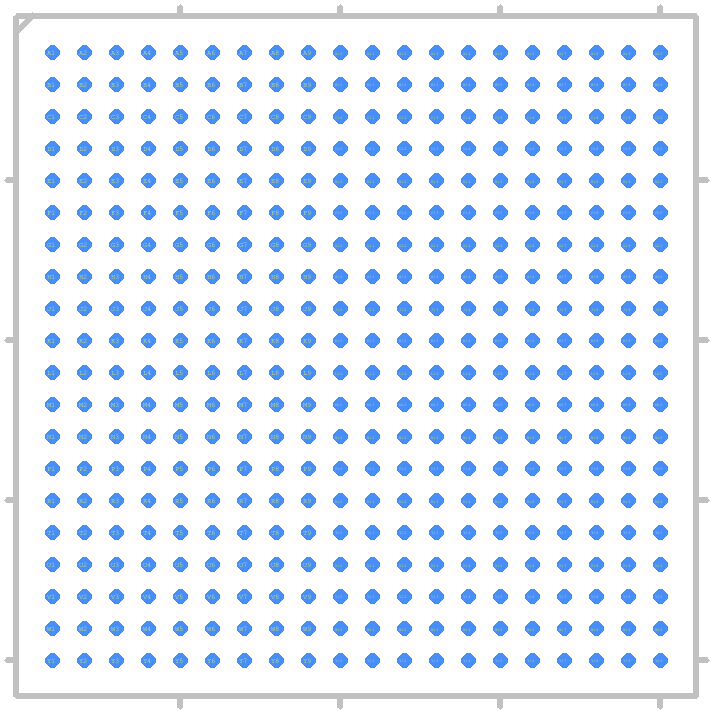

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCIMX353DVM5B
- Part Number MCIMX353DVM5B
- Manufacturer NXP
- Pin Count 400
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - BGA400C80P20X20_1700X1700X160
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCIMX353DVM5B Details
-
Manufacturer Part Number:
MCIMX353DVM5B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
17 X 17 MM, 0.80 MM PITCH, ROHS COMPLIANT, PLASTIC, BGA-400
-
Country Of Origin:
Mainland China
-
ECCN Code:
5A992.C
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
5
-
Additional Feature:
IT ALSO OPERATES AT 1.22 TO 1.47 V
MCIMX353DVM5B Frequently Asked Questions (FAQs)
-
The recommended crystal oscillator frequency for the MCIMX353DVM5B is 24 MHz. However, the device can also support other frequencies such as 16 MHz, 20 MHz, and 25 MHz with proper configuration and calibration.
-
The DDR memory interface on the MCIMX353DVM5B can be configured using the DDR Controller (DDRC) module. The DDRC module is programmed through a set of registers that control the DDR clock, timing, and data transfer. Refer to the MCIMX353DVM5B reference manual and the DDR memory vendor's datasheet for specific configuration details.
-
The maximum operating temperature range for the MCIMX353DVM5B is -40°C to 105°C. However, the device can also be operated at extended temperatures with reduced performance and reliability. Consult the datasheet and NXP's application notes for more information on temperature-related specifications and considerations.
-
The MCIMX353DVM5B supports secure boot through its BootROM and Secure Boot (SB) module. To implement secure boot, you need to generate a secure boot key, create a bootable image, and configure the SB module to authenticate the boot process. Refer to NXP's secure boot application notes and the MCIMX353DVM5B reference manual for detailed instructions.
-
The power consumption characteristics of the MCIMX353DVM5B vary depending on the operating frequency, voltage, and peripheral usage. The device has a typical active power consumption of around 250 mW at 400 MHz and 1.2 V. In low-power modes, the device can consume as low as 10 μW. Consult the datasheet and NXP's power management application notes for more information on power consumption and optimization techniques.
Trust Checks
System Verified
MCIMX353DVM5B Overview
Use the download button to access the MCIMX353DVM5B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
